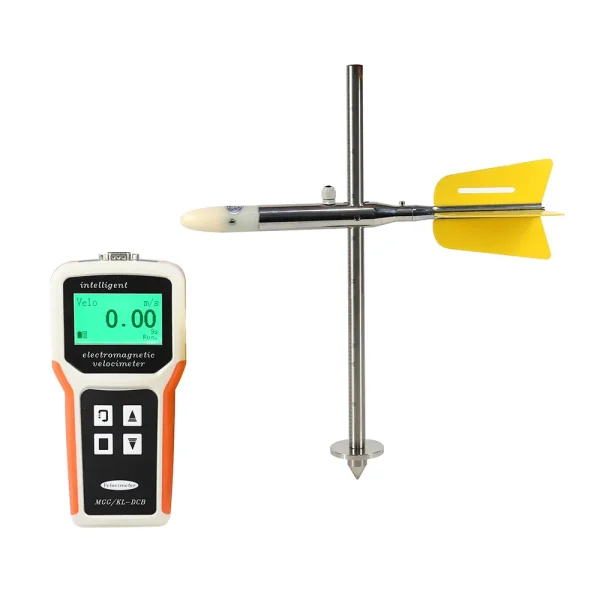

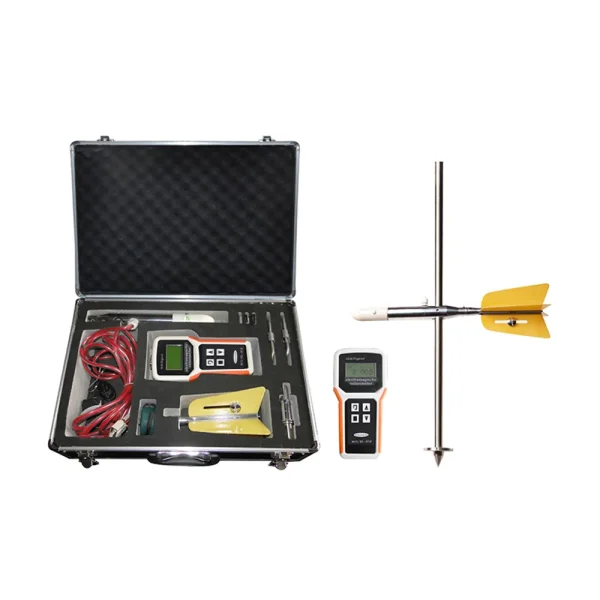

ABDT-EMFV1001 Portable Electromagnetic Velocity Meter
ABDT-EMFV1001 portable handheld electromagnetic velocity meter designed for hydrological and water conservancy surveys, with accurate flow velocity and flow measurement.
Characteristics
Type: Portable electromagetic type
Velocity measurement range:0.005-10m/s
Accuracy: ±1.0%
Model:
I Measure water velocity
II Measure water velocity and flow
III Measure water velocity,flow,water level
Power: 1.5V*5pcs battery
Physical interface: RS485
Overview
ABDT-EMFV1001(ABDT-MGG/KL-DCB)series of electromagnetic velocity meter is portable instrument flow designed for the flow velocity/rate measurement. It’s professional for agricultural irrigation, hydrologic monitoring, rivers flow monitoring, municipal water. The low-power design and full digital signal processing technology make measurement more stable and reliable. The range is wide and high accuracy. It widely applies to the measurement of flow velocity and rate for industry requires moving frequently such as agricultural irrigation, hydrology and water conservancy.Features
- No movable parts, no winding,no choked flow, no maintenance
- Display:Velocity,flow,accumulative total,level, flow direction, electric quantity, alarm information, running time, running status

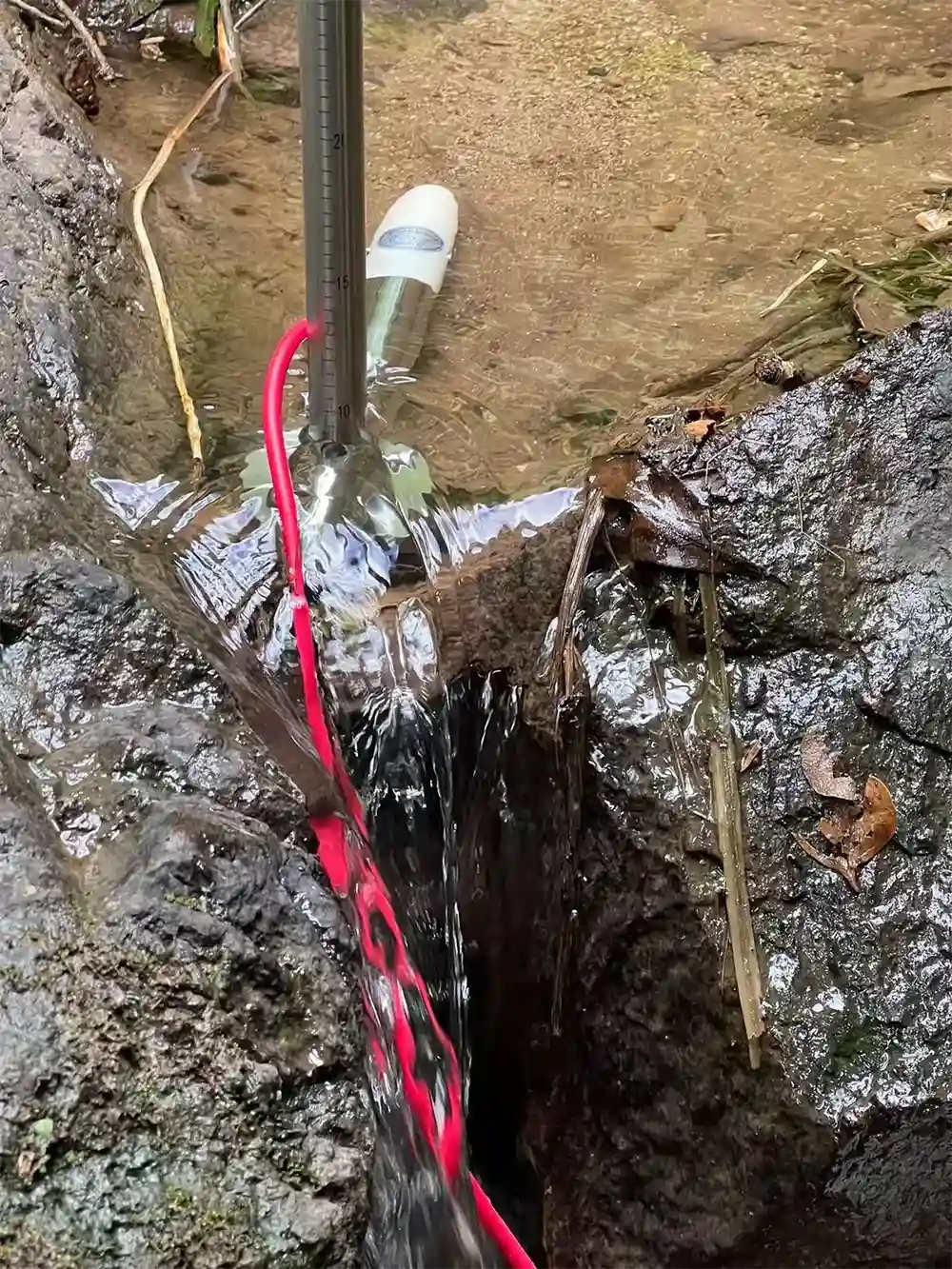

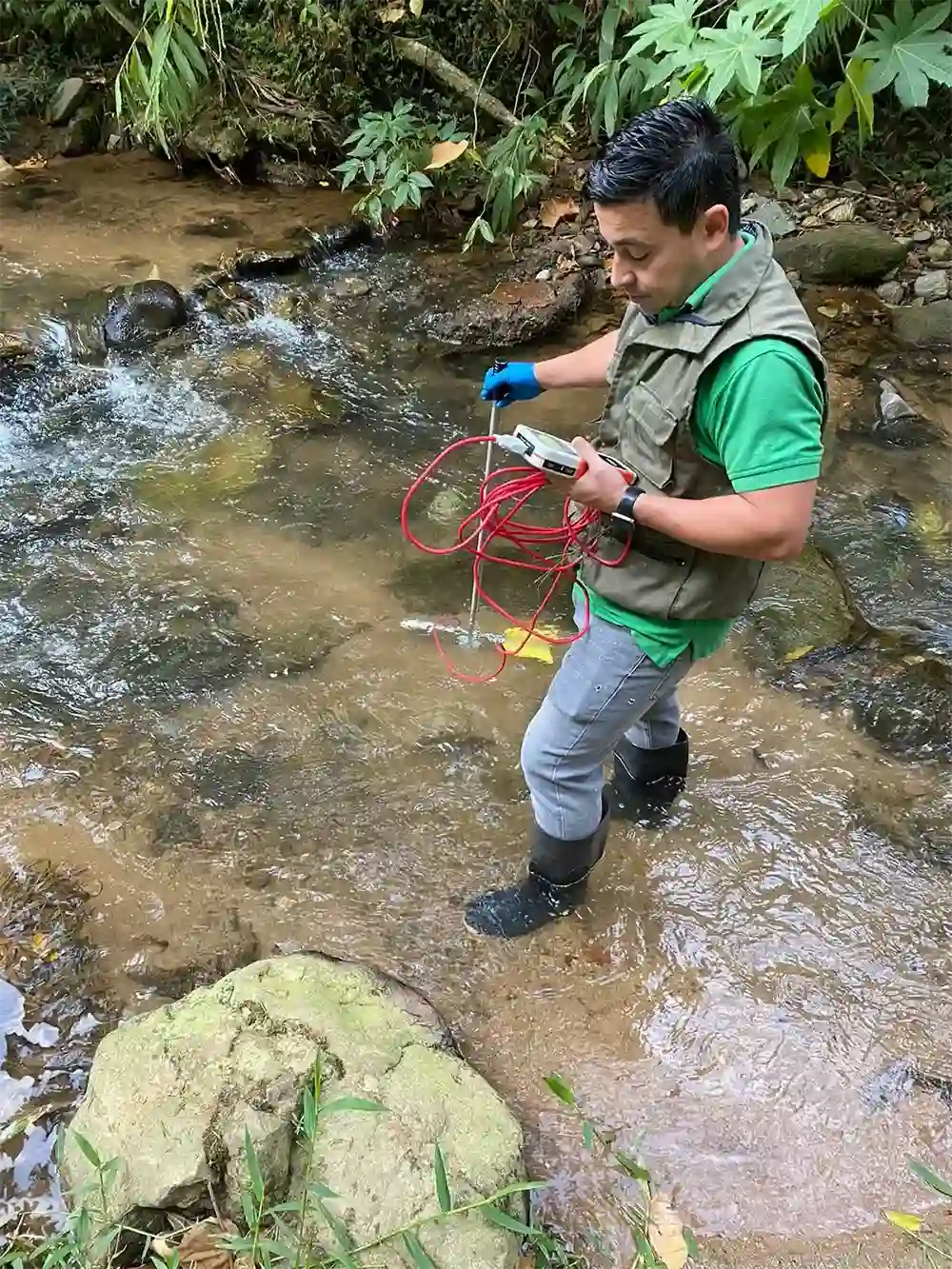

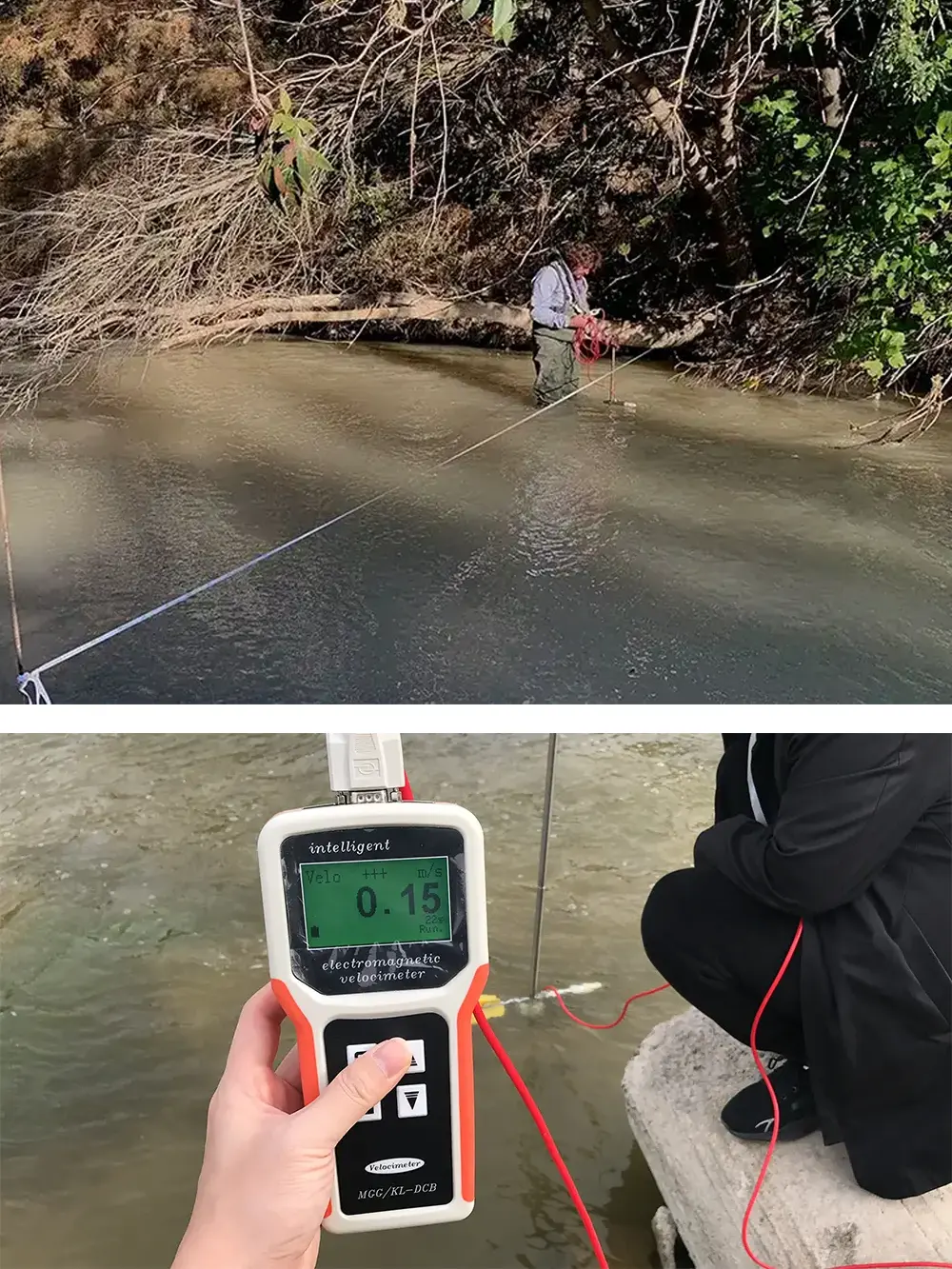

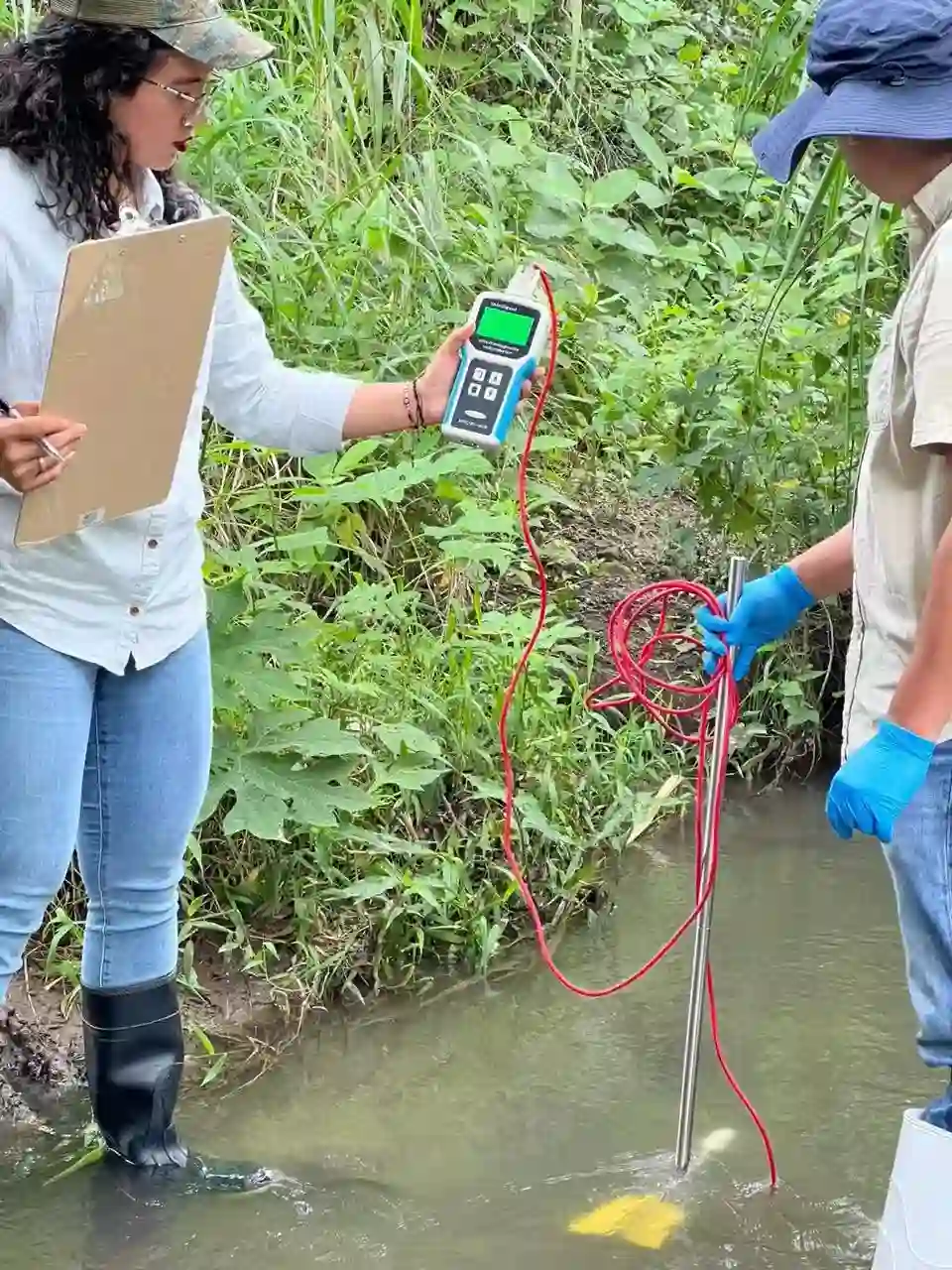

- Multiple measurement methods to choose(wading rod measurement, wire measurement and sailing measurement)
- Water level could be manually set or automatically measured
- Data storage and data export function
- Physical interface: RS485
- Auto power shut off
Measuring principle | Electromagnetic |
Velocity measurement range | 0.005-10m/s |
Accuracy | ±1.0%FR |
Model | I Measure water velocity |
Measuring variables | Velocity: I, II, III model Flow: II, III model Accumulative total: II, III model Level: III model |
Acquisition time | Auto 10S～900S adjustable, hand control time |
Communication | RS485 |
Display | LCD screen with back light |
Conductivity | >20µs/cm |
Medium temperature | 0-60℃/32-140℉ |
Ambient temperature | -10-50℃/14-122℉ |

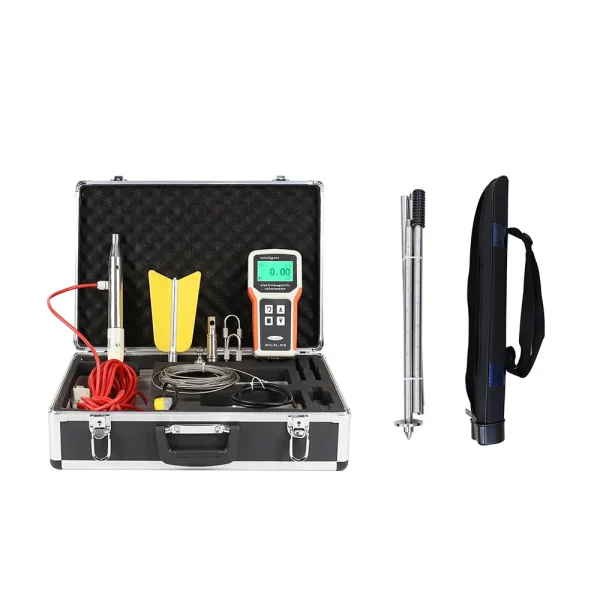

Measuring rod | Normal 500mm×Sections (1000mm optional） |
Power supply | 1.5V * 5pcs battery |
