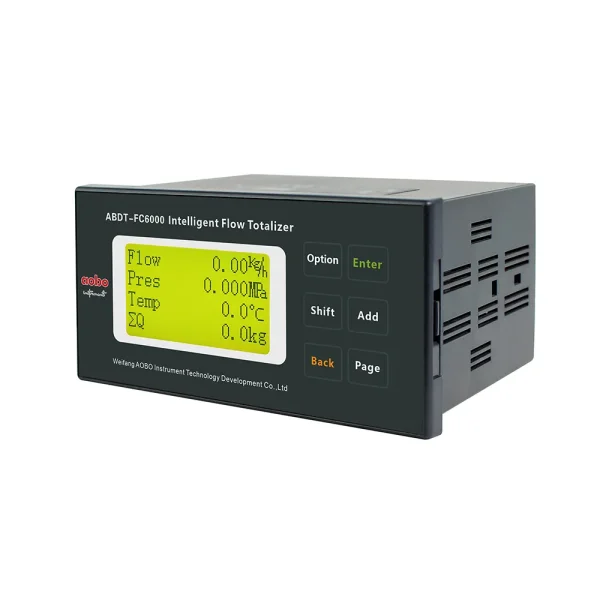

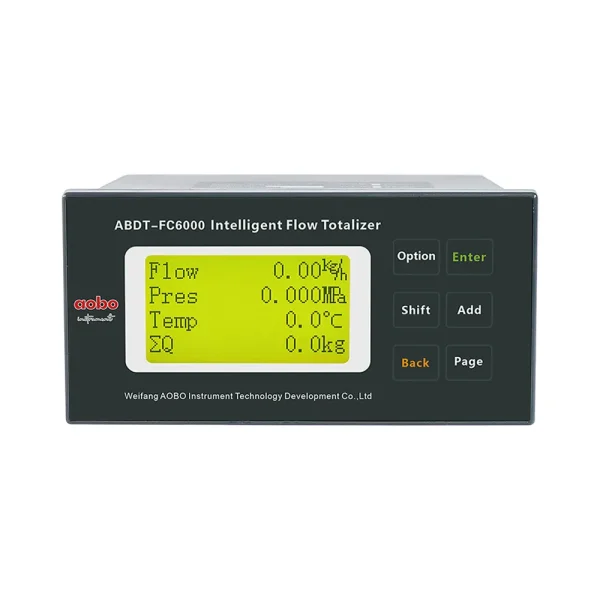

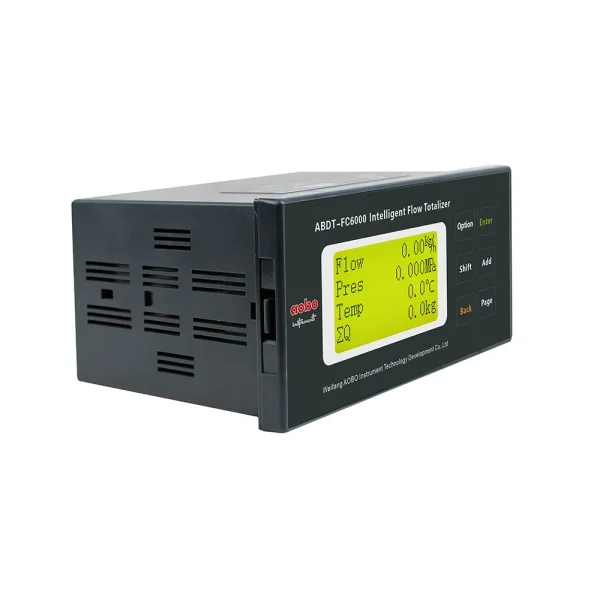

ABDT-FC6000 Intellignet Flow Totalizer

Overview

ABDT-FC6000 Intellignet flow totalizer is a new general flow computer based on smart Chinese/English menu configuration. It completes the steam, gas and liquid flow metering calculation function with faster computing speed, lower power consumption and more reliable performance. It can make real-time online fluid temperature and pressure compensation.It adds steam heat calculation function. It can receive flow, temperature, pressure and other signals at the same time, the signal can be frequency, current, differential pressure, resistance and other types.The signal processing adopts switch free contact and potentiometer free adjustable component technology, making the measurement more accurate and the work more reliable.

Features

• Multiple signals can be input, frequency signal, (4~20)mA current signal, Pt100 platinum resistance
• 4~20mA output function, active output ±0.2%, load capacity not less than 300Ω
• Support dual-channel communication output at the same time, RS232 or RS485 interface
• Display function:flow, cumulative flow,instantaneous heat, cumulative heat, gas enthalpy value,temperature,pressure,frequency, current, differential pressure, density, power failure times, last power failure time,cumulative power failure time
• Automatic compensation function for steam measurement, maximum pressure compensation of 10MPa for pressure compensation, maximum temperature compensation of 500 degrees for temperature compensation
• Small signal removal function, in an environment with slight vibration or interference, remove interference signals and improve the measurement stability of the integrator
• When the power is off, the calculation results and user-set data will not be lost and will be saved for more than 10 years
• Output power 12V/30mA or 24V/200mA
• Optional:quantitative control function, thermocouple input
