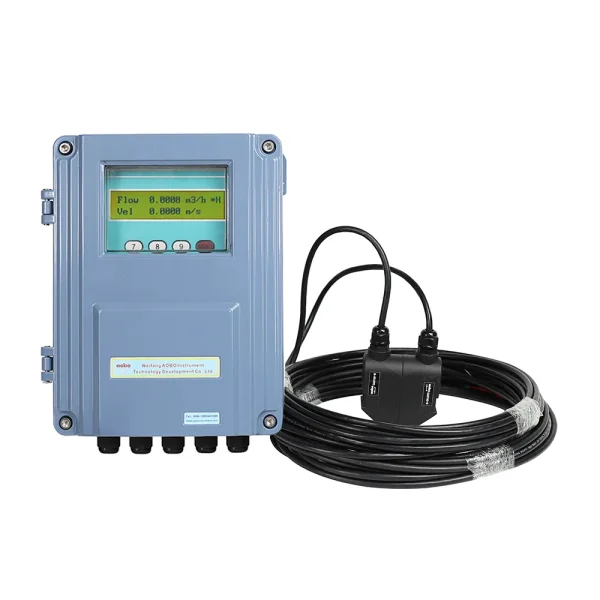

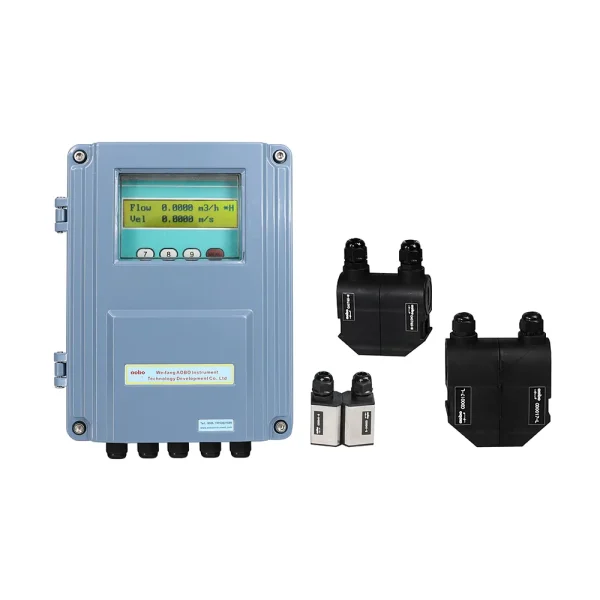

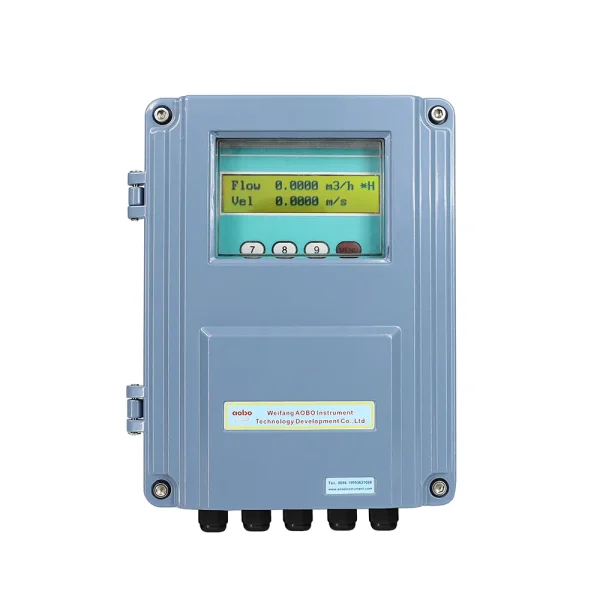

ABDT-LCT-C Wall Mounted Ultrasonic Flowmeter
Ultrasonic clamp-on flowmeter for flow measurement of liquids,noninvasive installation,can realize the measurement and calibration of flow velocity,flow,accumulation,heat
Characteristics

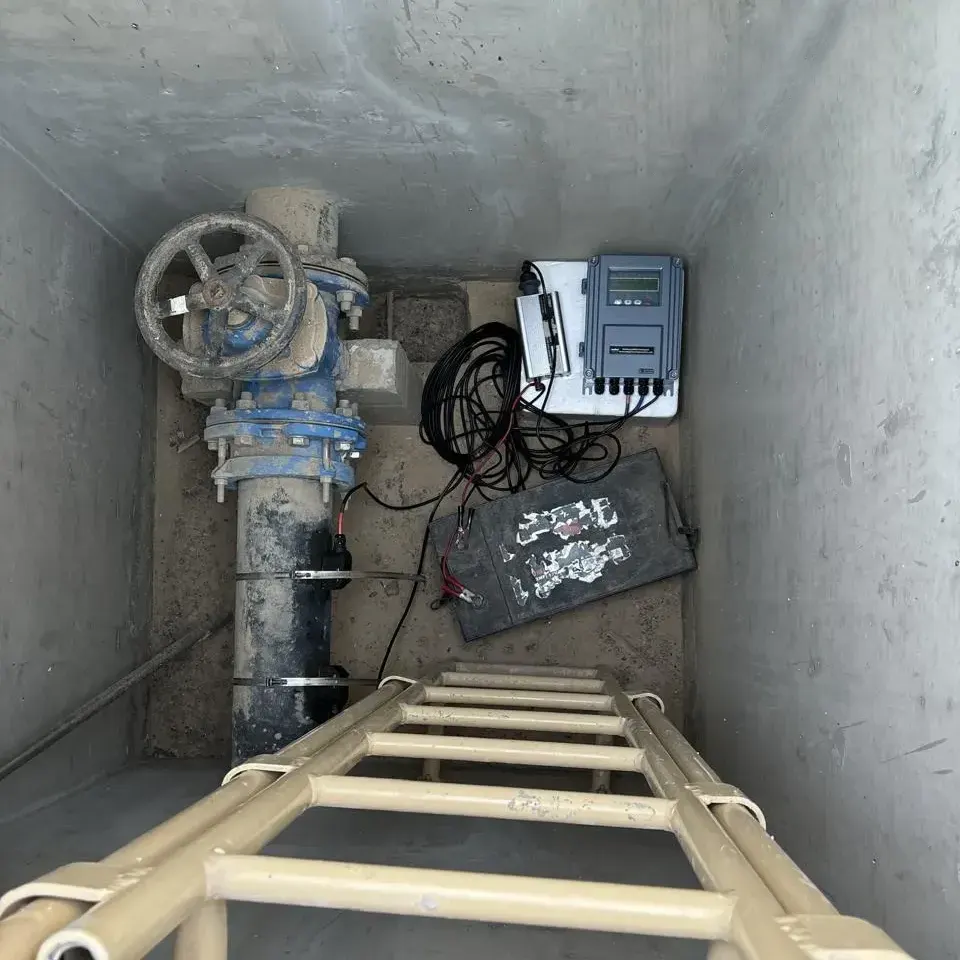

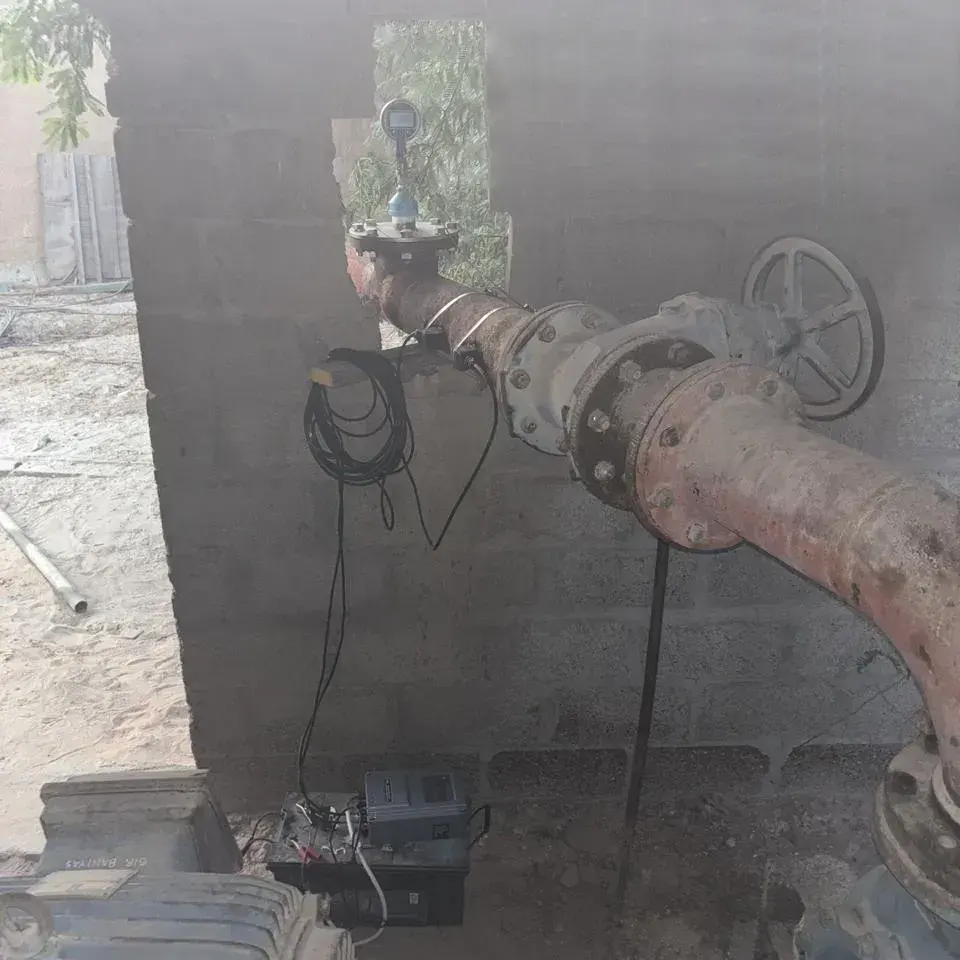

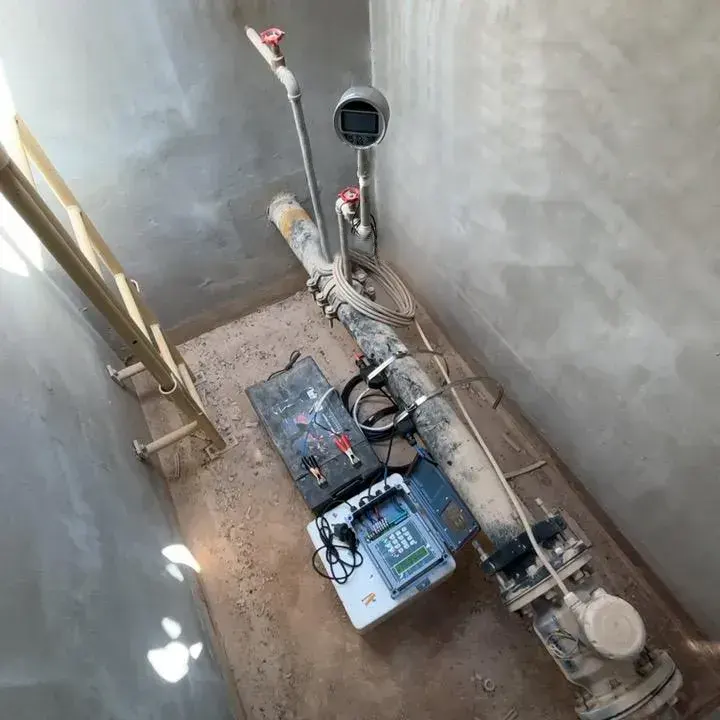

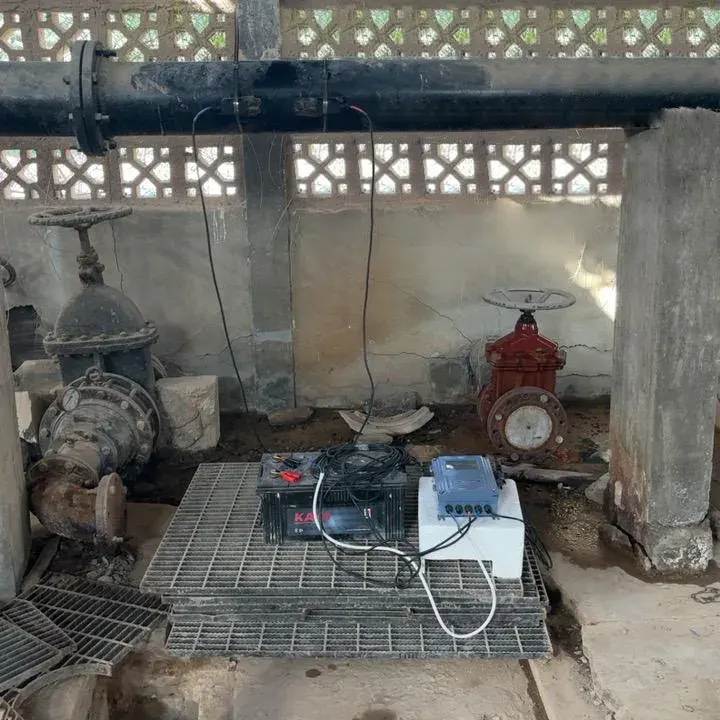

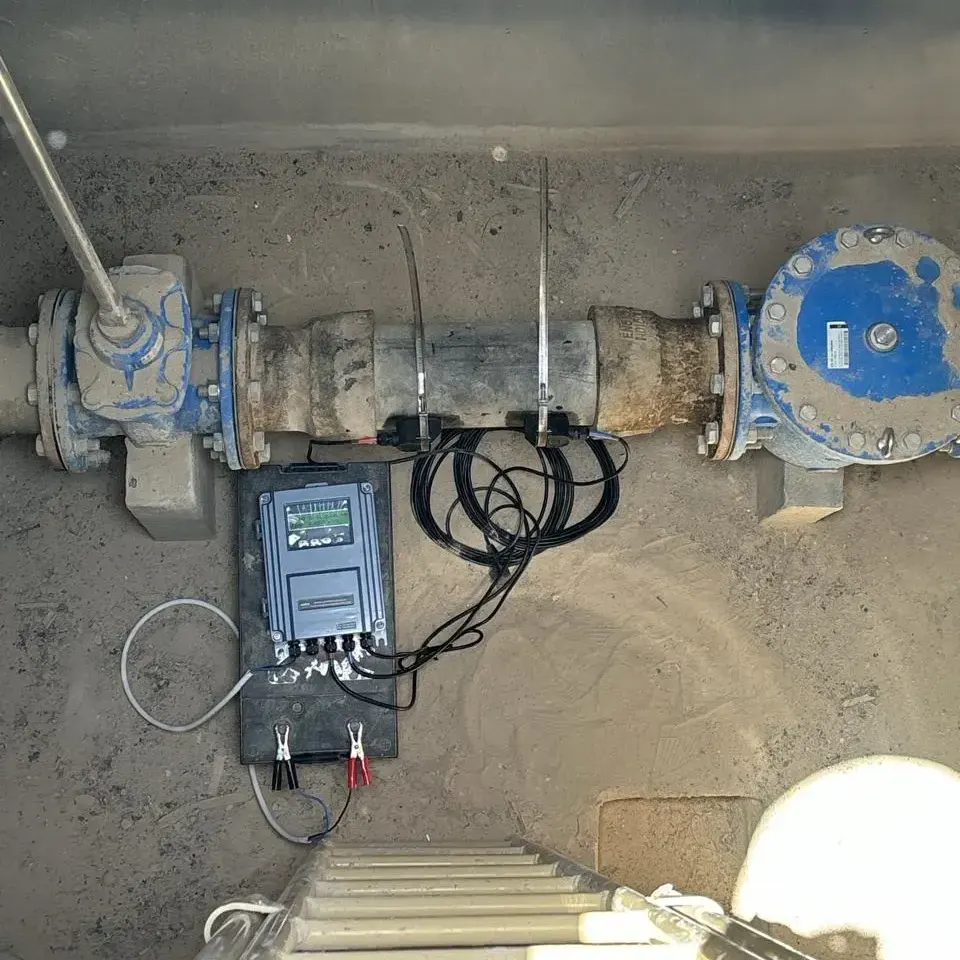

Stationary device,for installation at any location without process interruption or need to cut pipes
Nominal diameter range:DN15…6000 / ½…240″
Max temperature:up to +160°C / +320°F；
Input:4-20mA,PT1000
Output:Pulse,4…20 mA
Digtal communication:RS485 Modbus,M-bus,FUJI,HART
Overview
The ABDT-LCT-C clamp-on ultrasonic flow meter designed for measuring the flow of various single liquids. It offers easy installation with a non-intrusive design, suitable for pipes up to DN 6000 / 240″ without the need for cutting or interrupting the process. Equipped with ultrasonic sensor probes and coupling agents,it accurately measures flow rate,flow volume,accumulation and heat.Features

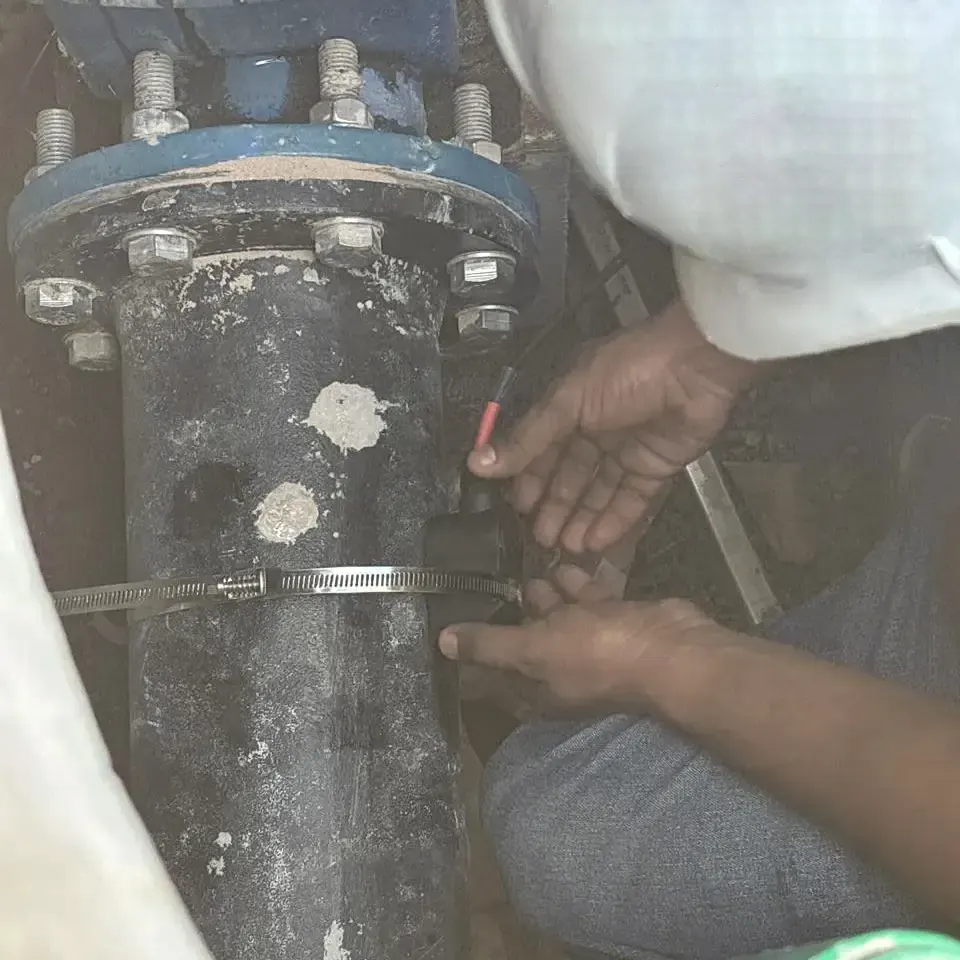

- Non-Invasive Measurement:Eliminates the need to cut pipes or interrupt processes. The sensors are clamped externally to the pipe,preventing contamination or leakage of the medium,making it ideal for applications where downtime is not an option
- Broad Pipe Size Compatibility:Suitable for pipes ranging from small to large diameters,typically from DN15 to DN6000,and compatible with various pipe materials. This clamp-on design offers significant cost savings,particularly for large-diameter pipes
- Versatile Liquid Measurement:Capable of measuring both conductive and non-conductive liquids,making it suitable for water,oil,chemical liquids,and more
- Easy Installation and Maintenance:Simple to install without the need for shutdowns or special construction. The external sensor design makes maintenance straightforward and convenient
- High Precision and Stability:Ultrasonic technology ensures highly accurate and stable flow measurement,with reliable long-term performance
- Multi-Functional Output:Supports real-time measurement of flow rate,totalized flow,and heat (energy),with multiple output signals available,such as 4-20mA and relay outputs,for seamless integration into control systems
Measuring principle | Ultrasonic Flow |
Measured media | Liquids |
Nominal diameter range | DN15-DN6000(½-240″) |
Measured variables | Volume flow, energy flow, calorific value, temperature |
Max. measurement error | Better than 1% |
Repeatability | Better than 0.2% |
Measuring range | 0.3-32m/s |
Max temperature range | +160°C / +320°F |
Ambient temperature range | Sensor-25 to +60°C; Transmitter-10 to +60°C |
Degree of protection | Sensor IP68, Converter IP65 |
Display/Operation | 4-line backlit display with touch control, remote dispaly with cables |
Outputs | 4-20mA or 0-20mA OTC(Pulse width 6-1000ms) Relay output |
Inputs | 2channel three wire PT100 platinum resisto(calculating heat) 3channel 4-20mA(pressure, liquid level, temperature and etc.) |
Digital communication | RS485 MODBUS, HART |
Power supply | AC(85 to 264)V DC(8-36)V |
