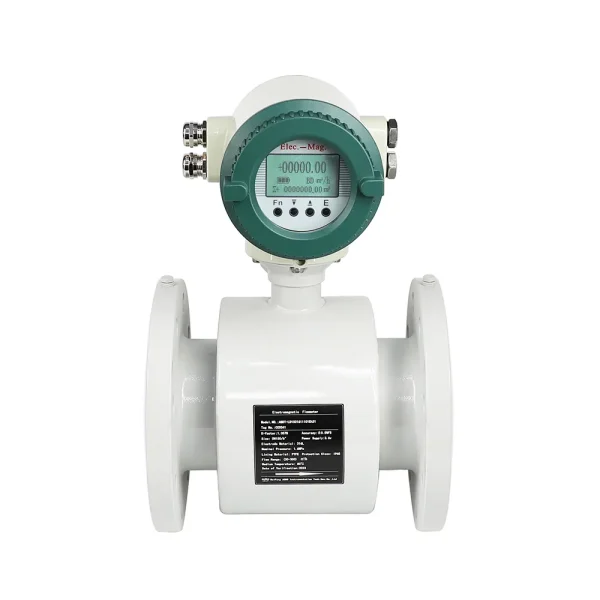

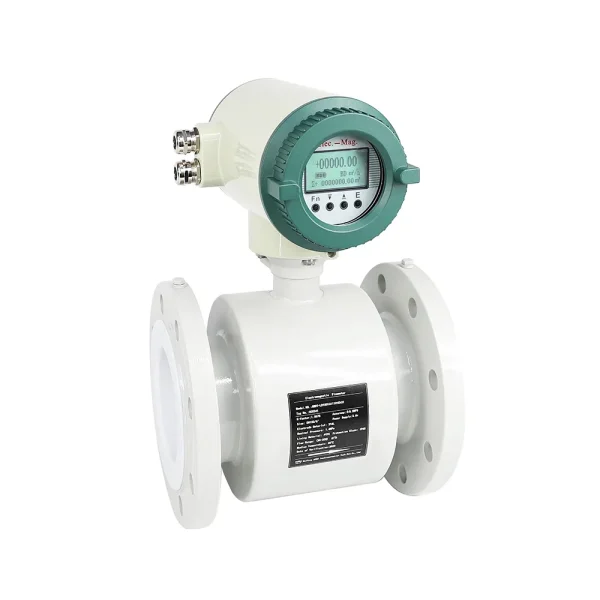

ABDT-LD Battery Powered Electromagnetic Flowmeter
Battery powered magnetic flowmeter designs and liner materials for all standard applications—from drinking water to extremely abrasive and aggressive liquids
Characteristics
Battery powered,battery use life up to 6 years
All-welded construction protection,IP68 and Explosion-proof
Different liners and electrodes materials available,for liquids (>5 μS/cm) with solid content (≤10%)
Nominal diameter range:DN6 to DN2000(½-80″)
Max nominal pressure:PN63/913psig
Max temperature:+180°C / +356°F
Flange standard: GB/ASME/ANSI/DIN/JIS Std
Overview
ABDT-LD series electromagnetic flow meter is a instrument for measuring the volume flow of conductive liquids(≥5μs/cm)with solid content (≤10%) in the closed pipelines. Even under harsh process conditions,It enables reliable flow measurement of various chemical liquids,sewage water,sea water,drilling mud or mining sludge and etc..It has (4~20) mA with HART,pulse and frequency signal,and RS485 communication port.It is coupled with the display,recording instrument,accumulation operator or regulator fordetection,calculation,adjustment and control of flow.Features
- Battery powered version is suitable for use without on-site power supply,battery use life can up to 6 years
- For maximum protection,a fully welded sensor housing provides a hermetic seal
- Bi-directional flow measurement over a wide dynamic range independent of pressure,density,temperature and viscosity
- Saving Energy by no pressure loss due to cross-section constriction
- Minimize maintenance and repair due to no moving parts design
- High definition backlight display,English menu,easy to use and access
- Nominal diameter from DN6 to DN2000,max PN 63
- Wide range of liner and electrode materials
- Temperature from -40°C to +180°C
- Special designs,sizes,inner diameters and liner thicknesses on request
- Standard measurement accuracy: ±0.5%; ±0.3% on special request
- Self-diagnostics incl. conductivity,electrode error,empty pipe,Excitation alarm and etc
- The converter comes with a 32-bit microchip,high speed digital signal processing,highly circuit reliability by SMT process
- Explosion-proof occasions approval
Measuring principle | Electromagnetic |
Measured media | Liquids |
Nominal diameter range | DN6-DN2000(½-80″) |

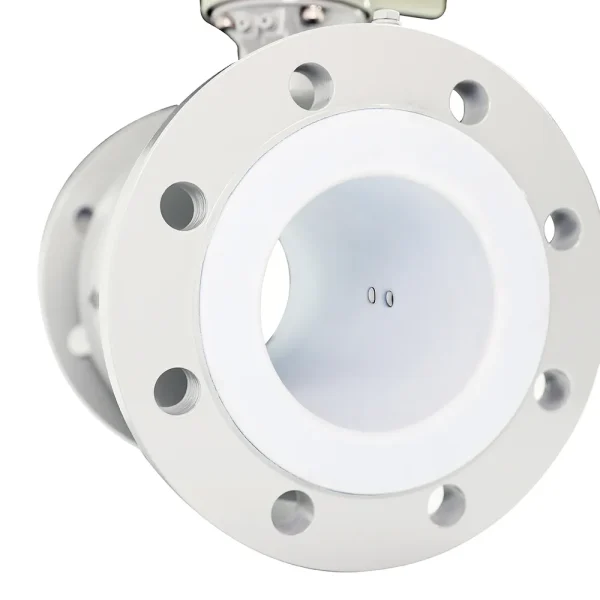

Liner | PTFE, PFA, F46 Rubber, Polyurethane rubber, Nitrile rubbe |
Electrodes | HB alloy, HC alloy 316L, Titanium, Tantalum Platinum-iridium alloy, Tungsten carbide |
Measured variables | Volume flow, mass flow, conductivity |
Accuracy | ±0.5 %, ±0.3% on special request |
Measuring range | 0.03m³-56000 m³/h |
Max nominal pressure | PN63/913psig |
Max medium temperature | +180°C / +356°F |
Ambient temperature range | Sensor -25 to +60°C Transmitter -10 to +60°C |
Protection | Sensor IP68, Transmitter IP65 |
Flange standard | GB/ASME/ANSI/DIN/JIS Std |

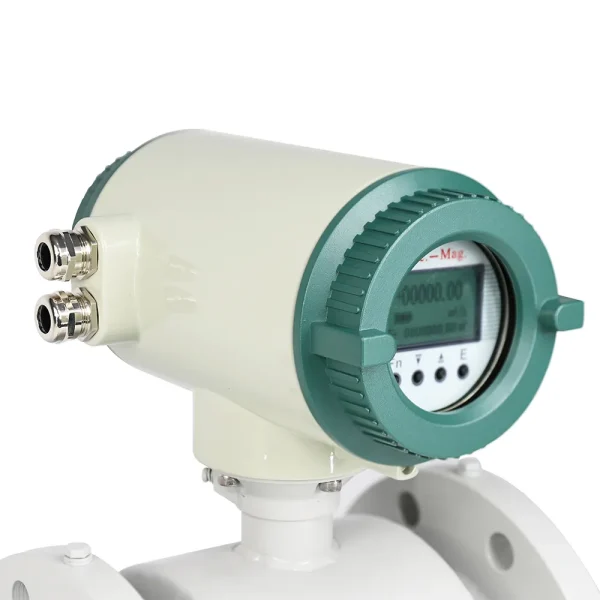

Display/Operation | 4-line backlit display with touch control, local display |
Power supply | AC(85~264)V, 50Hz DC(8-36)V |
Explosion-proof | Ex d mb IIC T6 Gb |
