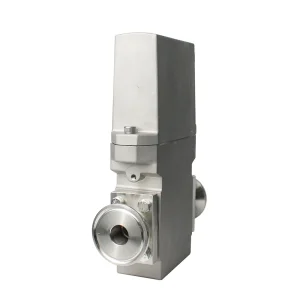

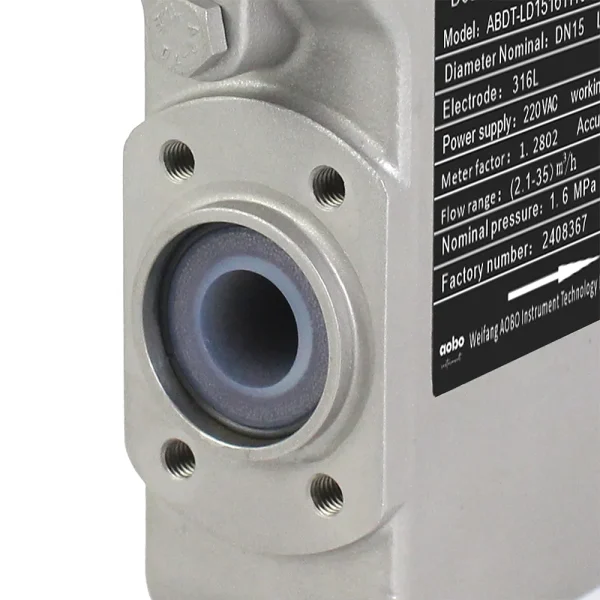

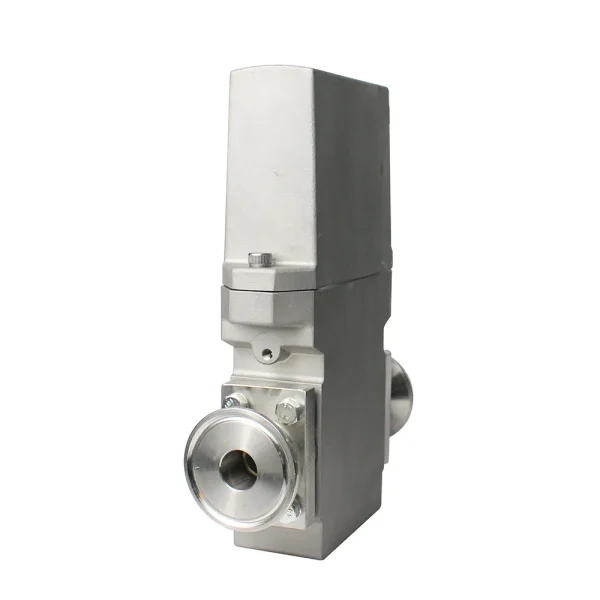

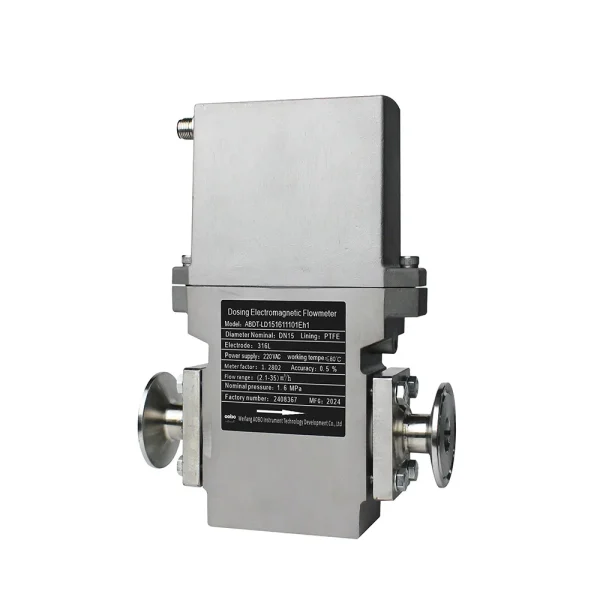

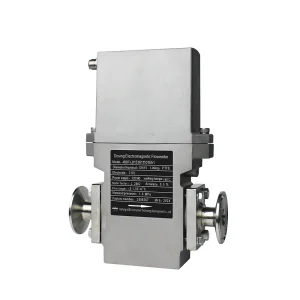

ABDT-LD Dosing Electromagnetic Flowmeter
Filling electromagnetic flowmeter with hygienic design,highest repeatability and an ultra-compact sensor.For demanding dosing and filling applications
Characteristics
All-welded construction protection,IP68 and Explosion-proof
Different liners and electrodes materials available,for rotary or linear filling machines
Nominal diameter range:DN15-DN50(½-2″)
Max nominal pressure:PN16/232psig
Max temperature:+180°C / +356°F
Output:Pulse,RS485 Modbus
Connection: Wafer,Flange
Overview
ABDT-LD Filling is an electromagnetic flowmeter (EMF) for rotary or linear filling machines.The flowmeter is compact,lightweight and has low power consumption; it uses a simple and compact integrated structure with no hygienic dead-end design,housing by stainless steel 304 and IP67 protection as standard.It is excellent repeatability electromagnetic flowmeter for filling applications with conductive liquids in the market.Its unique high dynamic response algorithm makes this flowmeter have very excellent repeatability and long-term stability.Due to its unique High-temperature special liner,easily meets CIP/SIP process.It is the preferred choice for system integrators,skid builders and equipment manufacturers.Features
- The compact and robust with no hygienic dead-end design
- Leak-free stainless steel housing design
- Highly filling accuracy,excellent long term stability and repeatability
- Designed for various conductive liquids (water,soft drinks,milk,juices etc.)
- Pulse,status and Modbus 485 communication
- SIP/CIP proof and IP67 rated
Measuring principle | Electromagnetic |
Measured media | Liquids |
Nominal diameter range | DN15-DN50(½-2″) |
Liner | PFA |
Electrodes | HB alloy, HC alloy 316L, Titanium, Tantalum Platinum-iridium alloy, Tungsten carbide |
Measured variables | Volume flow, mass flow, conductivity |
Accuracy | ±0.2% |
Measuring range | 0.03m³to 40m³/h |
Max nominal pressure | PN16/232psig |
Max medium temperature | +180°C / +356°F |
Ambient temperature range | Sensor -25 to +60°C Transmitter -10 to +60°C |
Protection | IP67 |
Connection | Wafer |
Display/Operation | DN10-DN15 None DN20-DN50 remote dispaly |
Outputs | Pulse |
Communication | RS485 Modbus |
Power supply | DC(8-36)V |
Explosion-proof | Ex d mb IIC T6 Gb |
