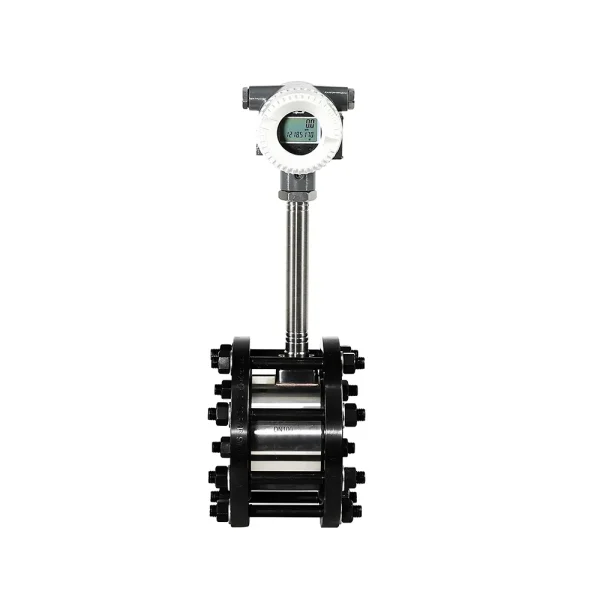

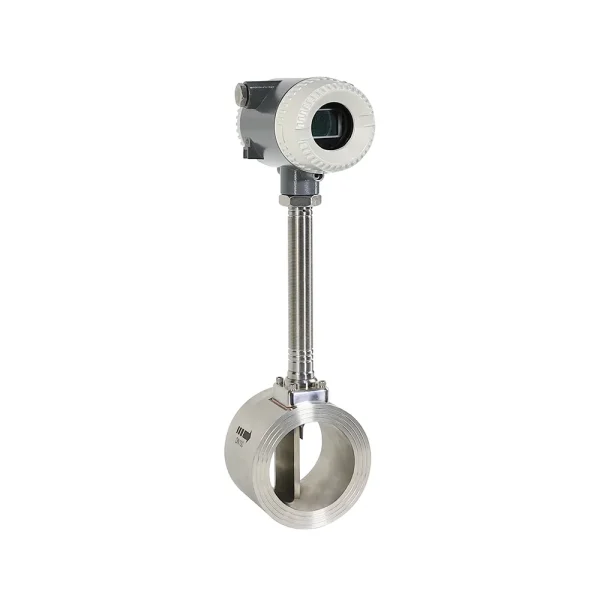

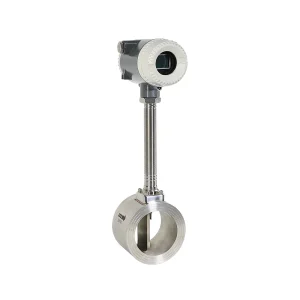

ABDT-LUB Vortex Flowmeter Wafer Installation with Display
Wafer design vortex flowmeter universally applicable for liquids, gases and steam with compact design
Characteristics
Wafer type design
Diameter:DN15-DN400/ ½…16″
Process temperature:-40°C to 420°C /-40°F to 788°F
Max process pressure:DN15 to DN100,PN40/580 psig
DN125-DN400,PN25/360 psig
Accuracy:1.0%,1.5%
Output signal:Pulse,frequency,4-20mA,RS485 Modbus,HART
Overview
Vortex flow meters are good choice in steam-related applications including steam measurement for district energy systems and industrial plants.It also excel for a variety of applications across a wide range of industries including oil and gas, steel and metal , chemical and Pulp and paper, and food and beverage.Features
- For liquids, (wet) gases, saturated and superheated steam (+420°C / +788°F)

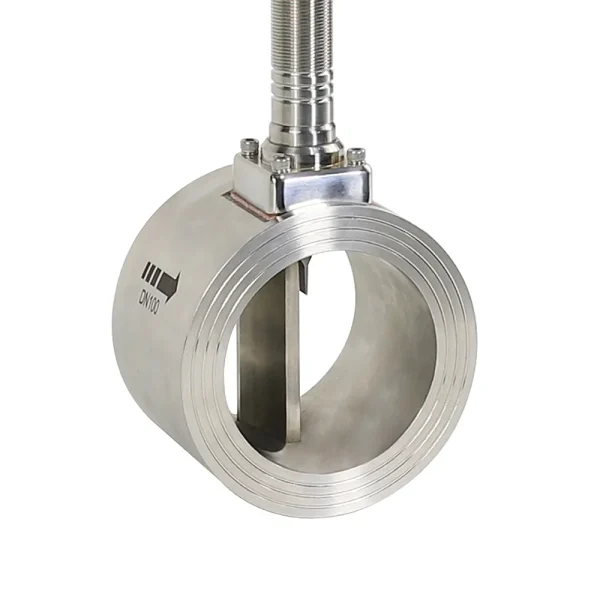

- Wafer design
- Wafer design saves space and is easy to install
- Wide flow range (1:15)
- Standard measurement accuracy: ±1%-±1.5% of Reading
- No moving parts to maintain or repair,easy installation
- Low power consumption,lower pressure loss,good repeatability and stability
- Long-term stability drift-free Piezoelectric sensors
- Pressure pipe container special equipment license and Explosion-proof

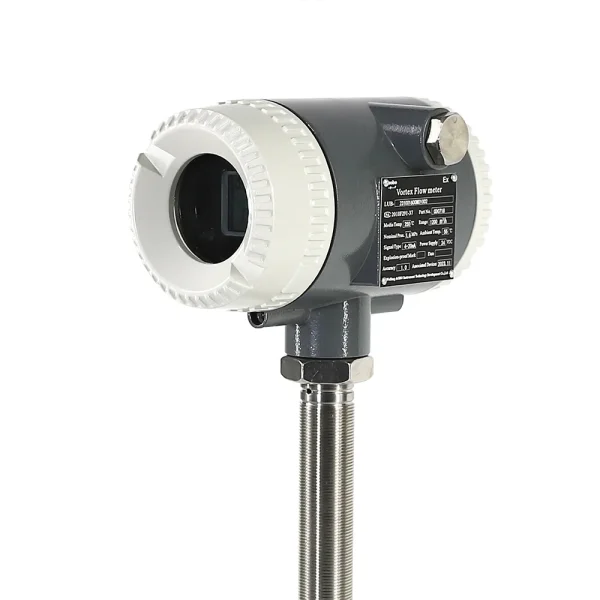

- High definition backlight display, English menu, easy to use and access
- Pulse and frequency signal, 4-20 mA HART, RS 485 communication
Measuring principle | Vortex |
Measured media | Liquids, Gases, Steams |
Nominal diameter range | DN15-DN400(½-16″) |
Measured variables | Volume flow, mass flow, corrected volume flow, temperature |
Accuracy | ±1%, ±1.5% of Reading |
Measuring range | Liquid: 0.5m³/h to 2000 m³/h Steam, gas: 5m³/h to 20000 m³/h |
Max nominal pressure | PN40 |
Max medium temperature | +420°C / +788°F |
Ambient temperature range | -40 to +55°C |
Protection | IP65, IP68 |
Wafer standard | GB Std |
Display/Operation | 4-line backlit display with touch control, local display |
Outputs | Pulse, 4-20mA, Frequency |
Inputs | PT100/PT1000 |
Communication | HART, RS485 Modbus |
Power supply | DC(12~24)V, DC3.6V battery Dual power(DC24V and DC3.6V baterry) |
Explosion-proof | Ex db IIC T6 Gb |
