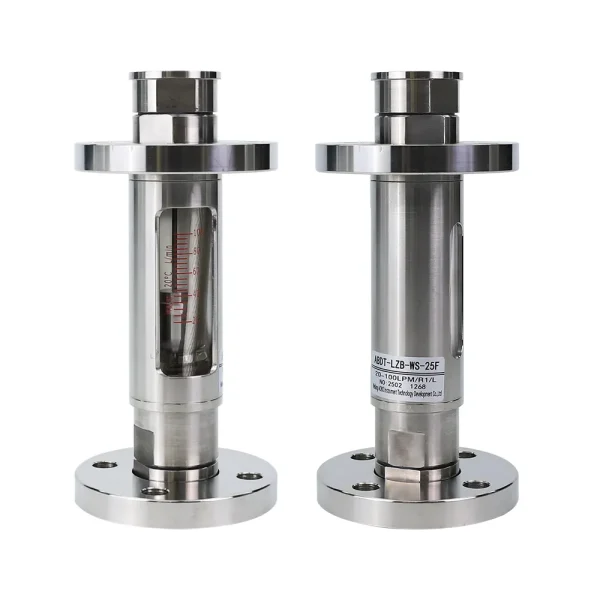

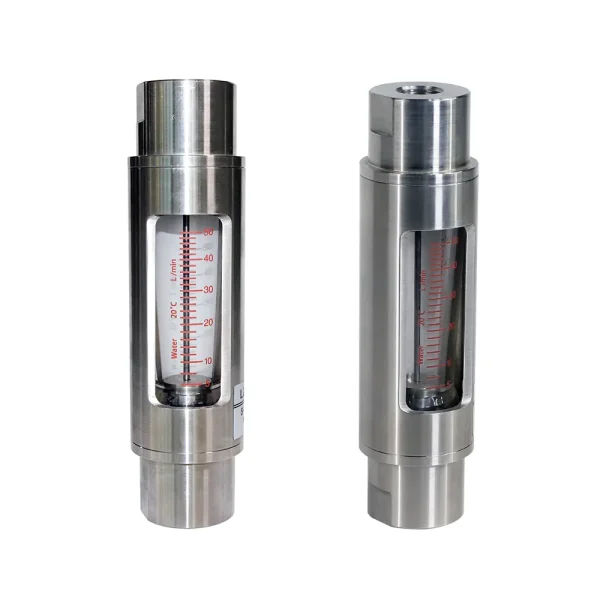

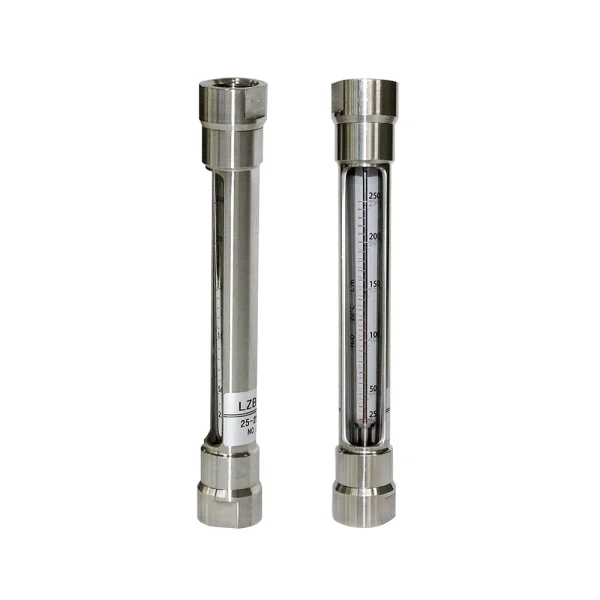

ABDT-LZB-WS Sanitary Glass tube Rotameter
Designed for flowrate measurements in many industries including system manufacture, food, water treatment plants and chemical
Characteristics
Hygienic connections
Size:DN15-50(½-2”）
Max Pressure:1MPa/145psig
Max temperature:100℃/212°F
Connection:FLange,G and NPT threads
Overview
ABDT-LZB Series Variable-area Flow meter mainly applies to areas like chemistry,oil industry,light industry,medicine,chemical fertilizer industry,food industry,dye industry,environmental protection,and scientific research. They are used to measure the flow rate of unidirectional non-impulse fluid (liquid or gas).Corrosion resistance flow meter are mostly applied in cases of corrosive liquid and gas,such as strong acid (except for hydrofluoric acid),strong alkali,oxidizer,strong oxidizing acid and organic solvent.Features
- Cost-Effective,economical Small instrument
- Affordable Measuring Principle:Operates without the need for auxiliary power
- High Accuracy:Maximum measurement error of ±4% of full scale
- Precision Control:Ideal for fine metering of small volumes of liquids and gases
- Premium Materials:Features an integrated high-quality needle valve in the foot or headpiece with fittings available in stainless steel, brass, or PVDF
- Compact Design:Glass tube meter with an easy-to-read scale and integrated valve
Measuring principle | Variable area float |
Measured media | Liquids |
Accuracy | ±4 % |
Size | DN15-50(½-2”） |
Measuring range | Liquid: 4-40L/h Gas: 100L/h-750m³/h |
Max process pressure | 10 barg/145psig |
Process temperature | 0 to +100°C / -40 to +212°F |
End connection | Flange, G and NPT threads |
