Overview

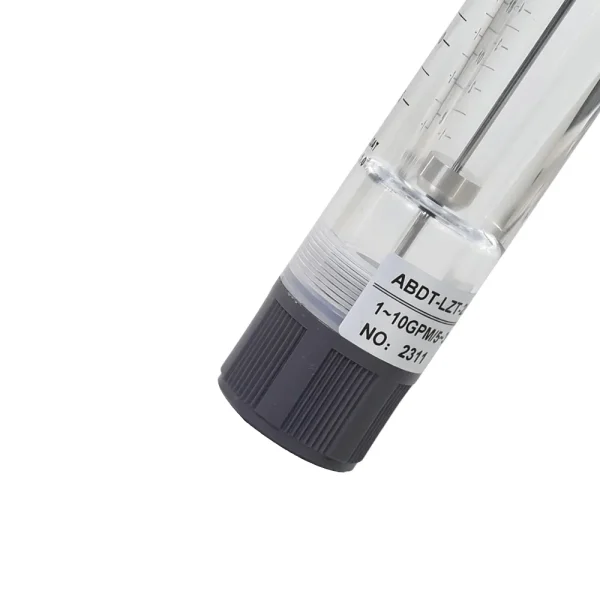

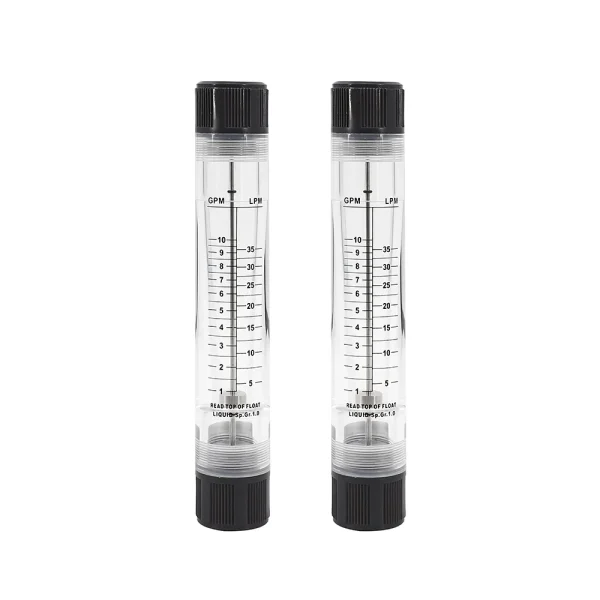

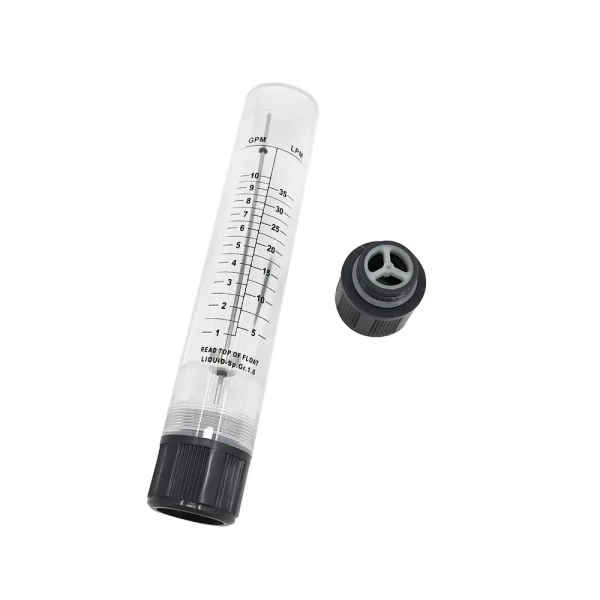

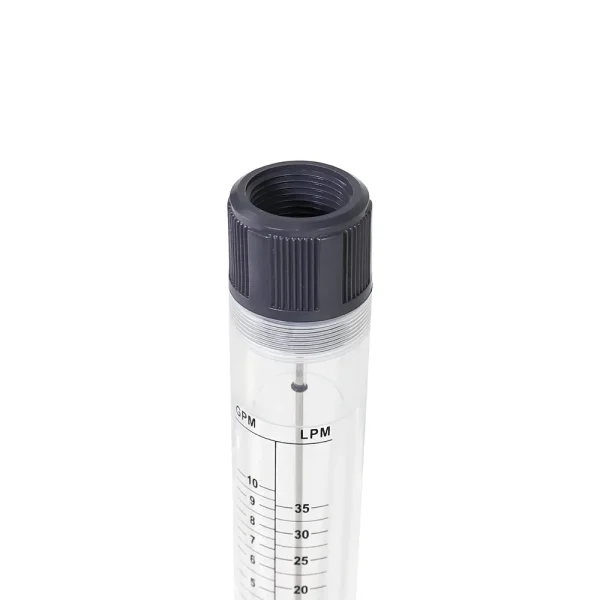

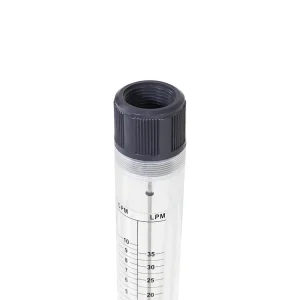

Acrylic tube rotameter (piping type)is one of the variable-area flow meters. The measuring tube is made of high-quality and transparent lucite(acrylic).This rotameter is mainly applied to clean water treatment and environmental protection projects. It is also widely used in chemical industry, petroleum,light industry, medicine, fertilizer, food, papermaking scientific research and other fields to measure the single-phase and non- pulsing flow of liquid and gas. Acrylic tube rotameter (piping type) has the features of high transparency, easy to read, not easy to break, light weight, long-life, easy installation and connection, etc.Features
- Lightweight Design:Made from PVC materials, making the device lightweight, easy to install, and maintain
- Transparent Casing:Commonly equipped with a transparent shell, allowing for easy observation of flow rates
- Cost-Effective:More affordable than metal flowmeters, making it suitable for budget-conscious applications
- Flow Measurement Accuracy:Designed for applications requiring low to moderate precision, typically used in non-critical measurement scenarios
Measuring principle | Variable area float |
Measured media | Liquids |
Accuracy | ±4 % |
Size | DN10-50(⅜-2”） |
Repeatability | ±0.25FS |
Measuring range | 2L/h-400m³/h |
Max process pressure | 6barg/87psig |
Process temperature | 0 to +60°C / -40 to +140°F |
End connection | G and NPT threads |
