ABDT-MC51-Y2 Intelligent Flow Totalizer
Totalizer display both the flow rate from an analog or pulse output flowmeter and the accumulated total volume
Characteristics
Accuracy:0.5%
Input:Pluse,4-20mA,PT100
Output:4-20mA,DC12V,DC24V
Communication:RS232/RS485 port
Function:Self-diagnosis, small signal removal, power-off protection
Overview

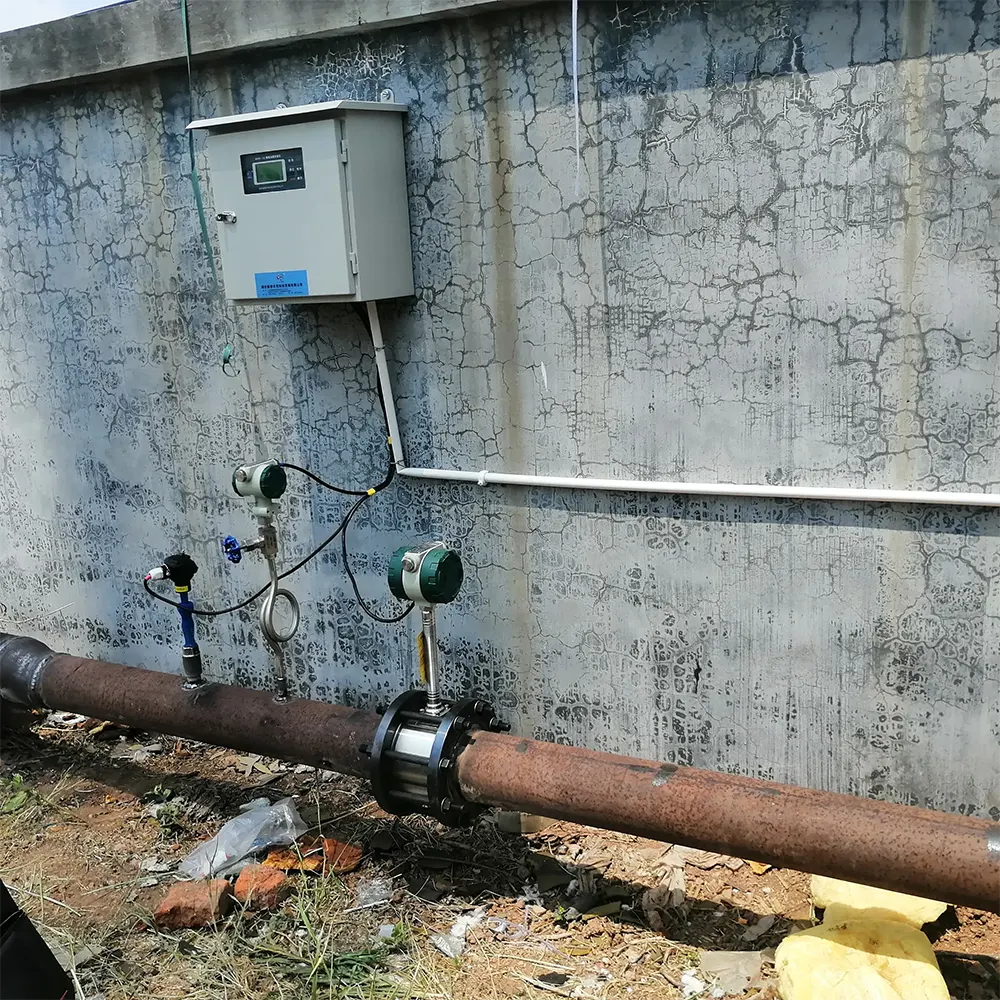

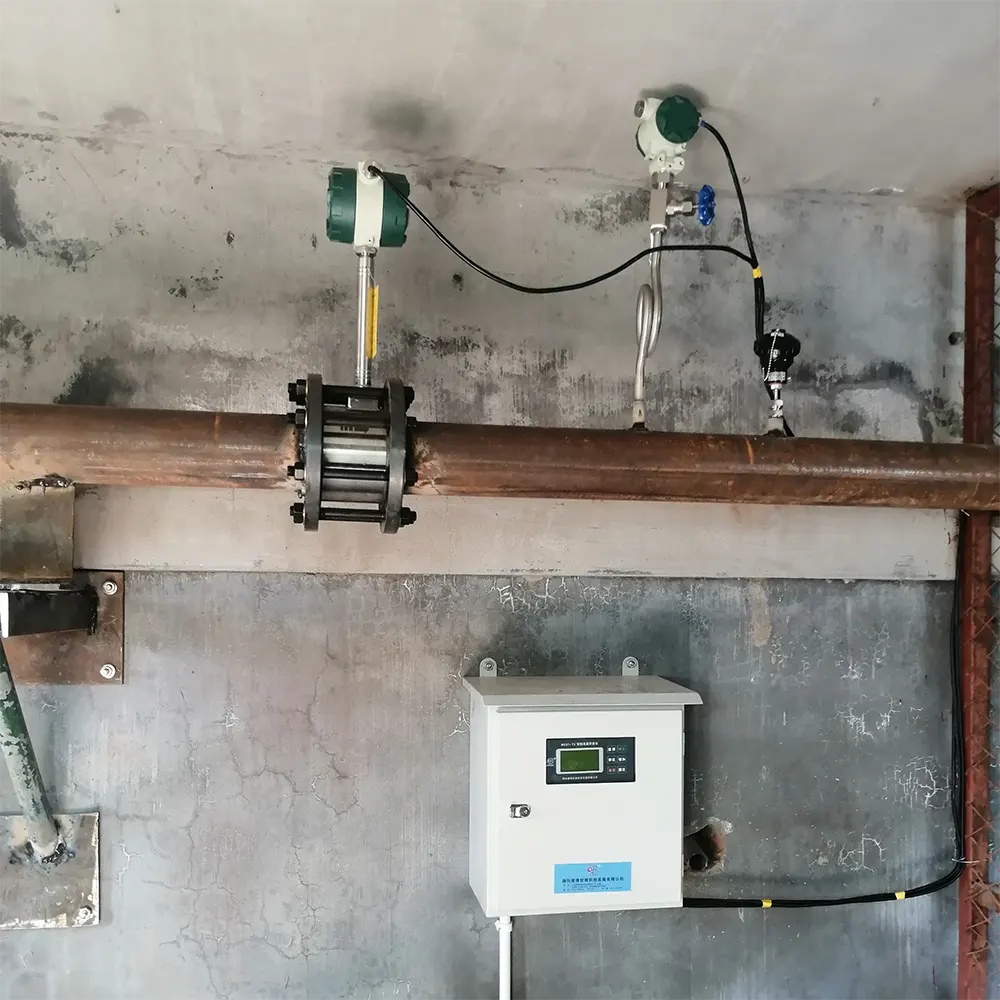

ABDT-MC51-Y2 Intelligent Flow Totalizer is a general flow integrating instrument with 16-bit ultra-low power single chip computer as the core and smart Chinese/English menu configuration. With reliable working performance, it completes the flow metering calculation function of steam, gas and liquid. It can compensate the temperature and pressure of the fluid in real time and receive flow, temperature, pressure and other signals. The signal can be frequency, current, differential pressure, resistance and other types. The signal processing adopts no switching contact and potentiometer adjustable parts technology to make the measurement more accurate and more reliable.The MODBUS communication technology with RS232/485 interface can be networked with various networks or industrial buses to realize remote meter reading.Features
- Supports multiple input signals, including frequency, (4–20)mA current, and Pt100 platinum resistance
- Features a (4–20)mA active output with ±0.2% accuracy and a load capacity of at least 300Ω
- Communication supported via RS232 or RS485 interface
- Comprehensive display functionality showing flow, cumulative flow, temperature, pressure, frequency, current, differential pressure, density, power failure events, and cumulative power failure time
- Automatic compensation for steam measurement with pressure compensation up to 10 MPa and temperature compensation up to 500°C
- Small signal suppression ensures stability in environments with slight vibrations or interference by filtering out irrelevant signals
- Non-volatile memory retains calculation results and user settings for over 10 years in the event of power failure
- Output power options include 12V/30mA or 24V/200mA
Inputs | Frequency, 4-20mA, PT100,differential pressure signal |
Outputs | 4-20mA |
Accuracy | ±0.5% |
Communication | RS232 or RS485 interface, standard MODBUS protocol |
Display function | Instantaneous flow, cumulative flow, pressure, temperature, frequency, current differential pressure, density, power-off times,power-off/power-on times of the last time cumulative power-off times, cumulative power-on time, date, time etc. |
Working power | AC220V±15% DC12V±5%, power dissipation<5W |
Feed output | 12V/30mA, 24V/200mA |
Environment temperature | -10~60℃ Humidity: (5-85)%RH |
Funcation | Self-diagnosis temperature and pressure compensation, Small signal cut-off, Power failure data logging |
Dimension | 160*80*120mm (L*W*D) |
