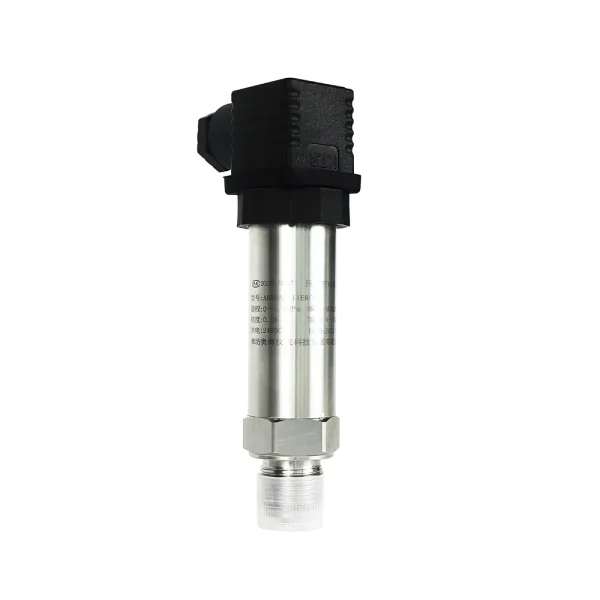

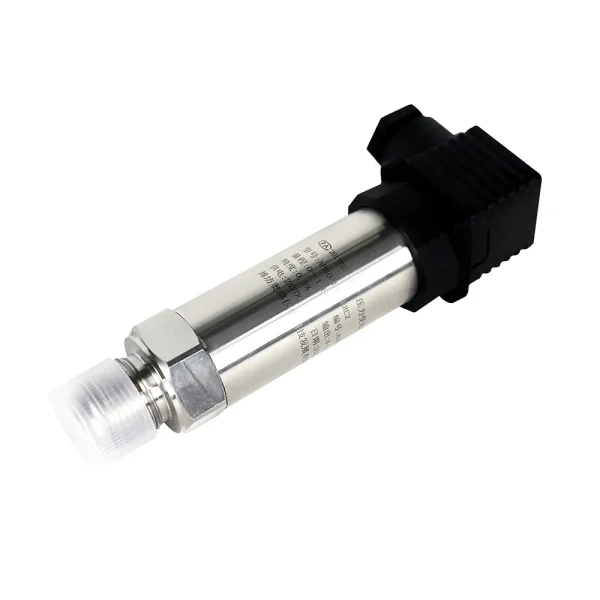

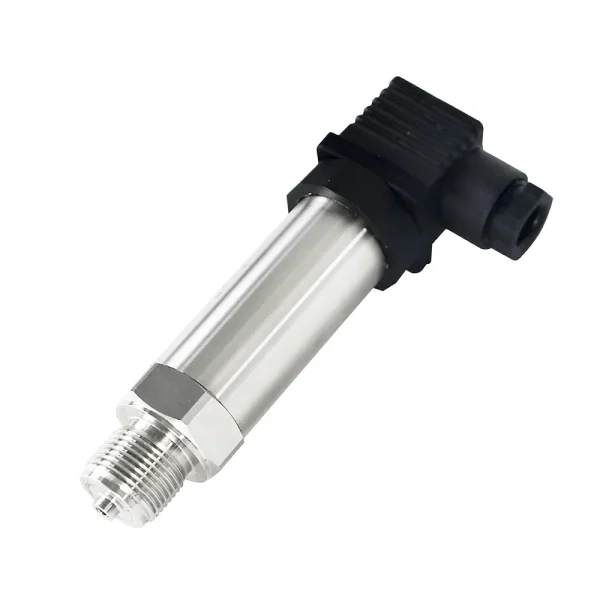

ABDT-PT2010 Pressure Transmitter
Compacted pressure transmitter for general pressure and level applications
Characteristics
Pressure measuring range:-0.1….60Mpa/-14.5….8700psig
Accuracy:±0.5%,±1%
Process temperature:-20….85℃/-4….185°F
Power supply:DC(18-24)V
Output:(4-20)mA
Communication:RS485
Overview
Widely used in air compressors,hydraulic equipment,machine tools,central air conditioning,refrigeration equipment,water treatment works,nvironmental purification,hydraulic and pneumatic control engineering,automotive,electrical,chemical,pharmaceutical,food and so on. Old-fashioned pressure equipment replacement essential products.Features
- Advanced Digital Smart Chip: Features all-temperature linear temperature compensation
- Compact and Cost-Effective Design: Space-saving structure with multiple connection options
- Durable and Reliable: Resistant to shock and vibration, ensuring stable performance
Measuring media | Oil, water, steam, gas and other media compatible with 316 stainless steel |
Pressure measuring range | -0.1….60MPa/-14.5….8700psig |
Accuracy | ±0.5,±1.0% |
Process temperature | -20….85℃/-4…185°F |
Response time | ≤ 200ms |
Load | Current type ≤ 500Ω (DC 24V power supply) |
Repeatability | ± 0.2% FS |
Long term stability | ± 0.5% FS |
Temperature compensation range | 0….60 ℃/32….140°F |
Overload | 2 times rated pressure |
Power supply | DC(18-24)V |
Output | (4-20)mA |
Communication | RS485 |
Display | None |
Protection | IP65 |
Process connection | M20*1.5, NPT¼‘’, G¼” |
