Overview
ABDT-YBY-118 digital pressure gauge is full electronic-structure and battery-powered, which make it very easy for on-site installation . Specifically , a high-precision piezo-resistive pressure sensor is used and the output signal is processed by the high-precision, low temperature drifting amplifier, then sent into the high-precision A/D converter to be converted into digital signal, after being computed and processed, the actual pressure value is showed on the LCD screen.It has benefits: flexible use, simple operation, easy debugging, safe, reliable etc. It is being widely used to measure and display the pressure of the medium in hydro-power, water, petroleum, chemical, mechanical, hydraulic and other industries.Features
- Compatible Media: Suitable for gases and liquids that are compatible with stainless steel
- Maximum Pressure Recording: Automatically records the maximum pressure during measurements
- Dynamic Pressure Display: Shows pressure as a percentage with a progress bar
- Multiple Engineering Units: Supports 10 units, including psi, bar, kPa, MPa, kgf/cm², mmH₂O, and mH₂O
- Auto Shut-Off: Adjustable auto-shutoff timer ranging from 0 to 15 minutes
- Low Power Consumption: Operates for over 2 years in power-saving mode or 2, 000 hours of continuous use
- Field Calibration: Allows parameter correction for zero and error adjustments during field applications
- Stainless Steel Case: Durable and reliable for various applications

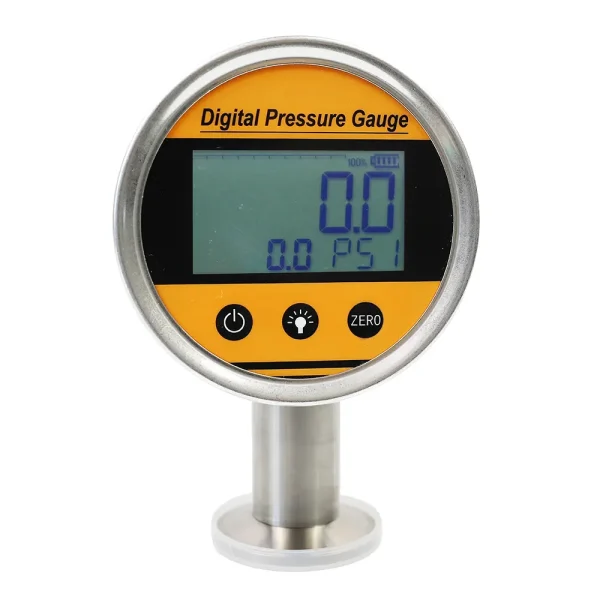

- Large LCD Display: High-resolution screen with backlight for clear and easy reading
Measured media | Liquid, gas, oil |
Meauring range | -0.1….100MPa/-14.5….14500psig |
Pressure type | gauge pressure, absolute pressure, sealed gauge pressure |
Pressure units | psi, bar, KPa, MPa, Kgf (Kgf/cm², MMH(mmH2O), MH2(mH2O)） |
Overload capacity | 200% |
Accuracy | ±0.1%, ±0.2%, ±0.5% |
Long-term stability | 0.1%FS/Y |
Dial Size | 100mm |
Supply voltage | 9V batteriey |
Sampling frequency | 4 times/s |
Case material: | 304 stainless steel |
Interface material | 304 stainless steel |

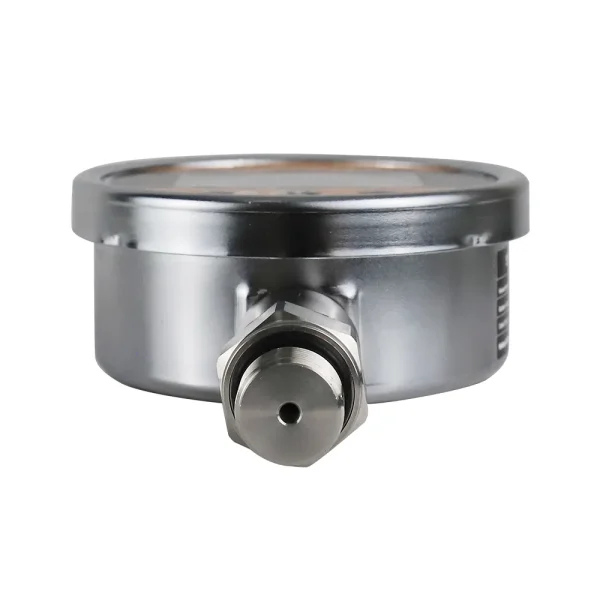

Connection | M20*1.5, ½” BSP |
Display range | -19999~99999 |
Backlight | Yes |
