Overview

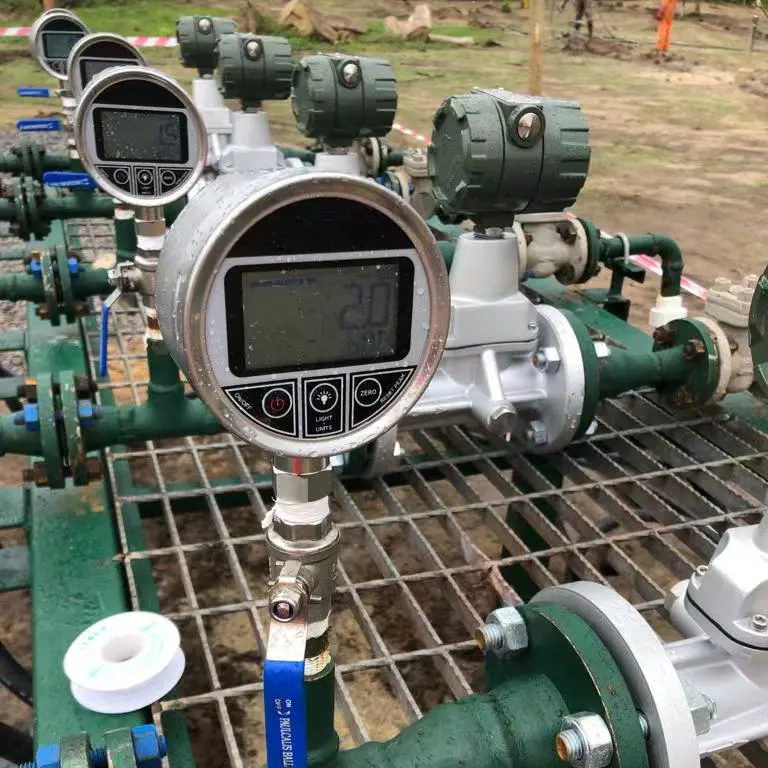

ABDT-YBY-118T pressure gauge integrates high sensitivity pressure, high precision signal conditioning circuit, low power battery power management, and rich LCD display interfaceNaturally strong anti-interference characteristics, it is an ideal intelligent instrument for pressure collection transmission and display.Suitable for oilfield, water conservancy, metallurgy, tap water and other industries.Features
- Advanced Microprocessor Technology: Battery-powered with ultra-low power consumption, providing a battery life of 2-5 years
- Wide Operating Temperature Range: Excellent temperature characteristics, capable of operating between -30°C and 70°C
- Explosion-Proof Design: Features an explosion-proof aluminum casing with an intrinsically safe circuit board system
- IP66 Protection: Fully sealed and waterproof for reliable operation in harsh environments

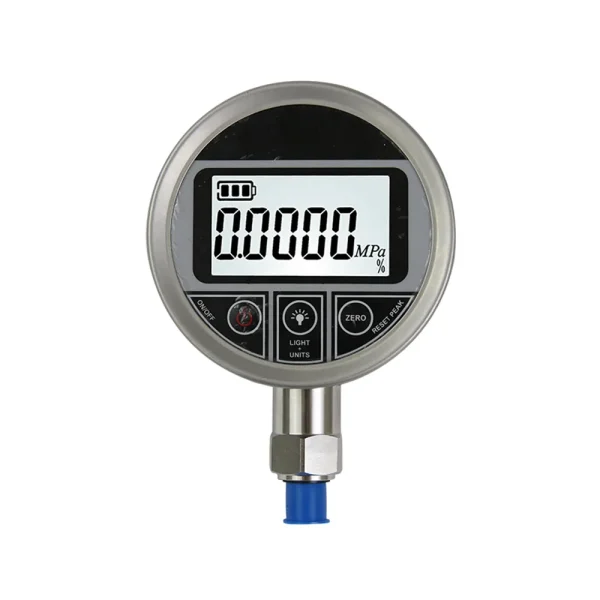

- Rich LCD Display: Includes power indicators and dynamic percentage display
- Main Screen Display: 5-digit real-time pressure reading for precise monitoring
- Secondary Screen Features: Displays time, date, data count, and more
- Graphical Display: Shows pressure percentage alongside battery level for intuitive monitoring
- White Backlight: Provides clear visibility for nighttime use
- Multiple Pressure Units: Supports easy conversion between various pressure units
- Flexible Sampling Rate: Adjustable acquisition rate from 16 seconds per sample to 4 samples per second for diverse applications
- Data Storage: Capable of recording up to 260, 000 data entries
Measured media | Liquid, gas, oil |
Meauring range | -0.1….100MPa/-14.5….14500psig |
Pressure type | Gauge pressure, absolute pressure, sealed gauge pressure |
Pressure units | Psi, bar, KPa, MPa Kgf (kgf/cm², MMH(mmH2O), MH2(mH2O) |
Overload capacity | 200% |
Accuracy | ±0.05%, ±0.1%, ±0.2%, ±0.5% |
Long-term stability | 0.1%FS/Y |
Dial Size | 100mm |
Supply voltage | 3.6V batteriey |
Sampling frequency | 16times/s….4 times/s |
Case material | 304 stainless steel |
Interface material | 304 stainless steel |
Connection | M20*1.5, ½” BSP |
Display range | -19999~99999 |
Backlight | Yes |
Explosion-proof | Intrinsically safe explosion-proof |
Protection | IP66 |
Data storage | 260000 pieces of data |
