Overview

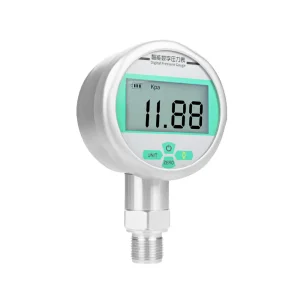

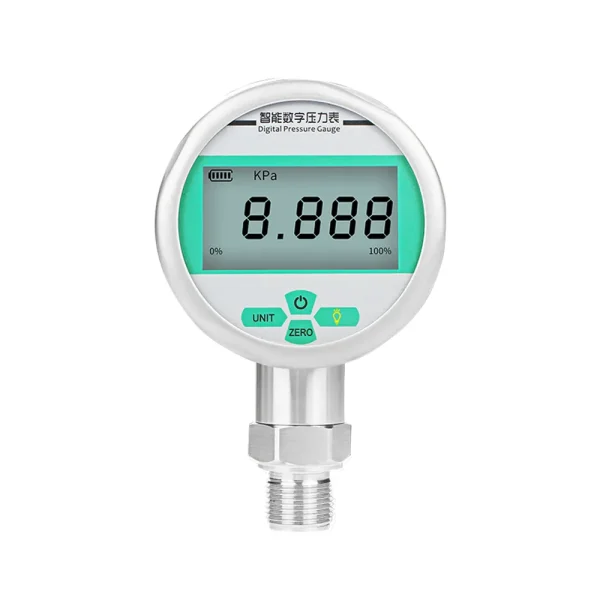

ABDT-YBY-80C high precision digital pressure gauge with built-in high-precision pressure sensor can accurately display the pressure in real time, and has the characteristics of high precision and good long-term stability.This product is equipped with LCD screen, which has many functions such as zero clearing, backlight, on-off, unit switching and low-voltage alarm. It has the advantages of simple operation and convenient installation.This product adopts high-quality 304 stainless steel shell and joint, with good seismic resistance, and can measure gas, water, oil and other non corrosive media to stainless steel.This product is suitable for portable pressure measurement, equipment matching, calibration equipment and other pressure measurement applications.Features
- Supports multiple measurement units with one-key switching for ease of use
- Features temperature compensation with a low-temperature coefficient for more accurate measurements
- 1.1 times the maximum range overload with a peak recording function for enhanced reliability, along with a one-click reset for convenience
- Four-digit half-segment display for precise and intuitive readings
- Graphical battery power indicator and bar graph display for pressure percentage values
- Equipped with a white backlight for easy nighttime viewing.
Measured media | Liquid, gas, oil |
Meauring range | -0.1….60MPa/-14.5….8700psig |
Pressure type | Gauge pressure, absolute pressure, sealed gauge pressure |
Pressure units | Psi, Bar, KPa, kg/cm², MPa |
Overload capacity | < 40MPa, 150% ≥ 40MPa, 120% |
Accuracy | ±0.5% |
Long-term stability | 0.2%FS/Y |
Dial Size | 80mm |
Supply voltage | 3V (2 AAA batteries) |
Sampling frequency | 3 times/s |
Case material: | 304 stainless steel |
Interface material | 304 stainless steel |

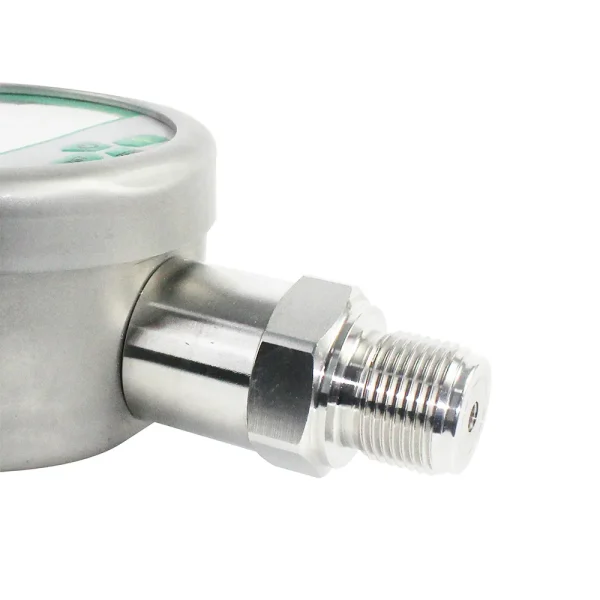

Connection | M20*1.5, ½” BSP |
Display range | -1999~9999 |
Backlight | Yes |
