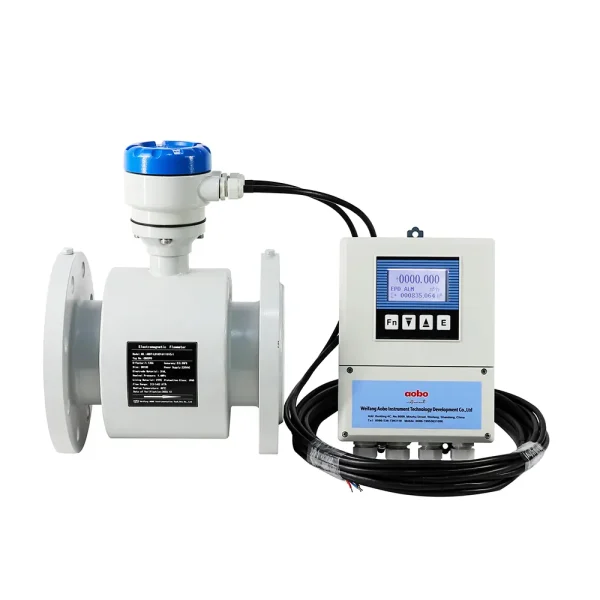

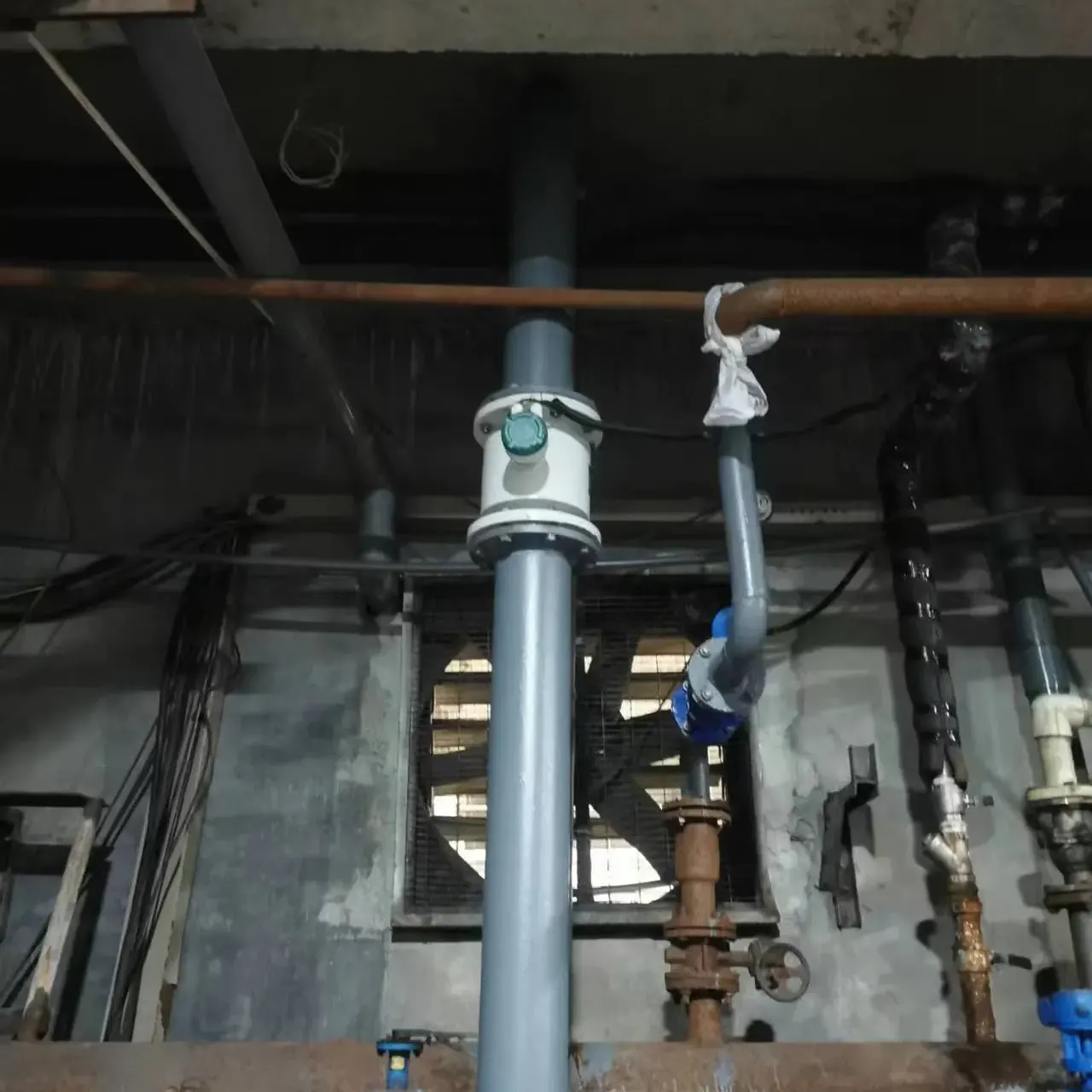

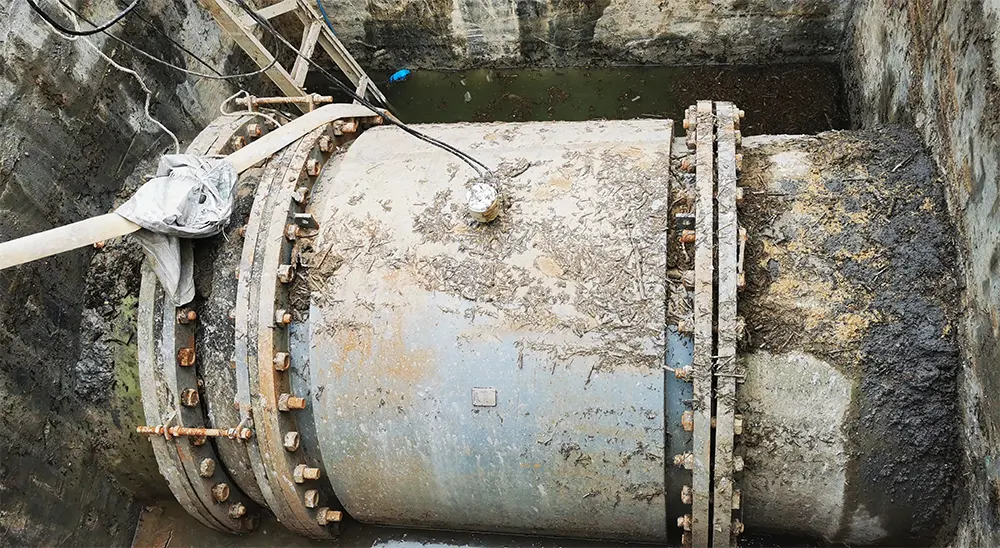

ABDT-LD Remote Mounting Electromagnetic Flowmeter
Magnetic flowmeter designs and liner materials for all standard applications—from drinking water to extremely abrasive and aggressive liquids
Characteristics

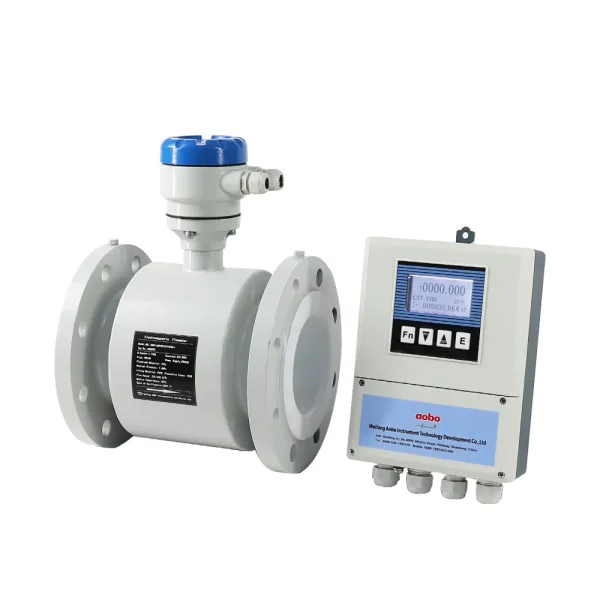

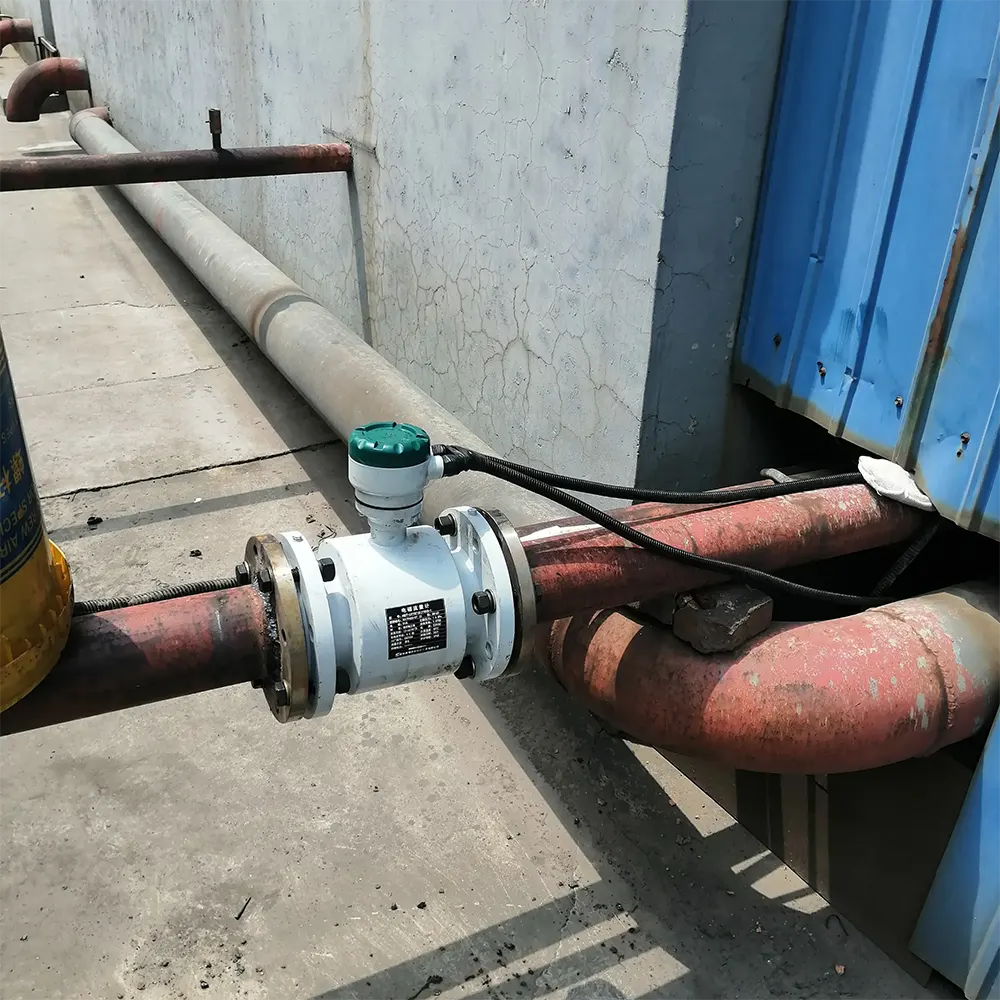

Split design for remote display.
All-welded construction protection,IP68 and Explosion-proof.
Different liners and electrodes materials available,for liquids (>5 μS/cm) with solid content (≤10%)
Nominal diameter range:DN6-DN2000(½-80″)
Max nominal pressure:PN63/913psig
Max temperature:+180°C / +356°F
Output:Pulse,frequency,status,4-20 mA (HART),485 port
Flange standard: GB/ASME/ANSI/DIN/JIS Std
Overview
ABDT-LD series electromagnetic flow meter is a instrument for measuring the volume flow of conductive liquids(≥5μs/cm)with solid content (≤10%) in the closed pipelines. Even under harsh process conditions,It enables reliable flow measurement of various chemical liquids,sewage water,sea water,drilling mud or mining sludge and etc..It has (4~20) mA with HART,pulse and frequency signal,and RS485 communication port.It is coupled with the display,recording instrument,accumulation operator or regulator fordetection,calculation,adjustment and control of flow.Features
- For maximum protection,a fully welded sensor housing provides a hermetic seal
- Bi-directional flow measurement over a wide dynamic range independent of pressure,density,temperature and viscosity
- Saving Energy by no pressure loss due to cross-section constriction
- Minimize maintenance and repair due to no moving parts design
- High definition backlight display,English menu,easy to use and access
- Nominal diameter from DN6 to DN2000,max PN 63
- Wide range of liner and electrode materials
- Temperature from -40°C to +180°C
- Special designs,sizes,inner diameters and liner thicknesses on request
- Standard measurement accuracy: ±0.5%; ±0.3% on special request
- Self-diagnostics incl. conductivity,electrode error,empty pipe,Excitation alarm and etc
- The converter comes with a 32-bit microchip,high speed digital signal processing,highly circuit reliability by SMT process
- Explosion-proof occasions approval
Measuring principle | Electromagnetic |
Measured media | Liquids |
Nominal diameter range | DN6-DN2000(½-80″) |
Liner | PTFE, PFA, F46 Rubber, Polyurethane rubber |
Electrodes | HB alloy, HC alloy 316L, Titanium, Tantalum Platinum-iridium alloy, Tungsten carbide |
Measured variables | Volume flow, mass flow, conductivity |
Accuracy | ±0.5 %, ±0.3% on special request |
Measuring range | 0.03m³-56000 m³/h |
Max nominal pressure | PN63/913psig |
Max medium temperature | +180°C / +356°F |
Ambient temperature range | Sensor -25 to +60°C Transmitter -10 to +60°C |
Protection | Sensor IP68, Transmitter IP65 |
Flange standard | GB/ASME/ANSI/DIN/JIS Std |

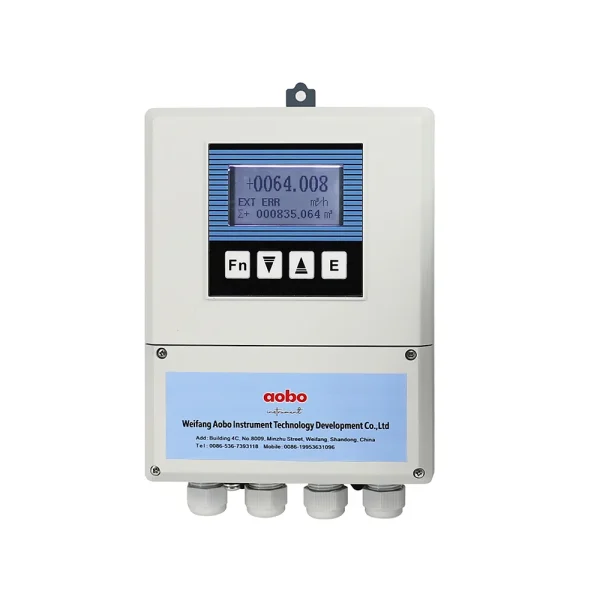

Display/Operation | 4-line backlit display with touch control, remote dispaly with cables |
Outputs | Pulse, 4-20mA, Frequency, Relay output, Status |
Inputs | PT100/PT1000(BTU meter) |
Communication | HART, RS485 Modbus |
Power supply | AC(85~264)V, 50Hz DC(8-36)V |
Explosion-proof | Ex d mb IIC T6 Gb |
